Description

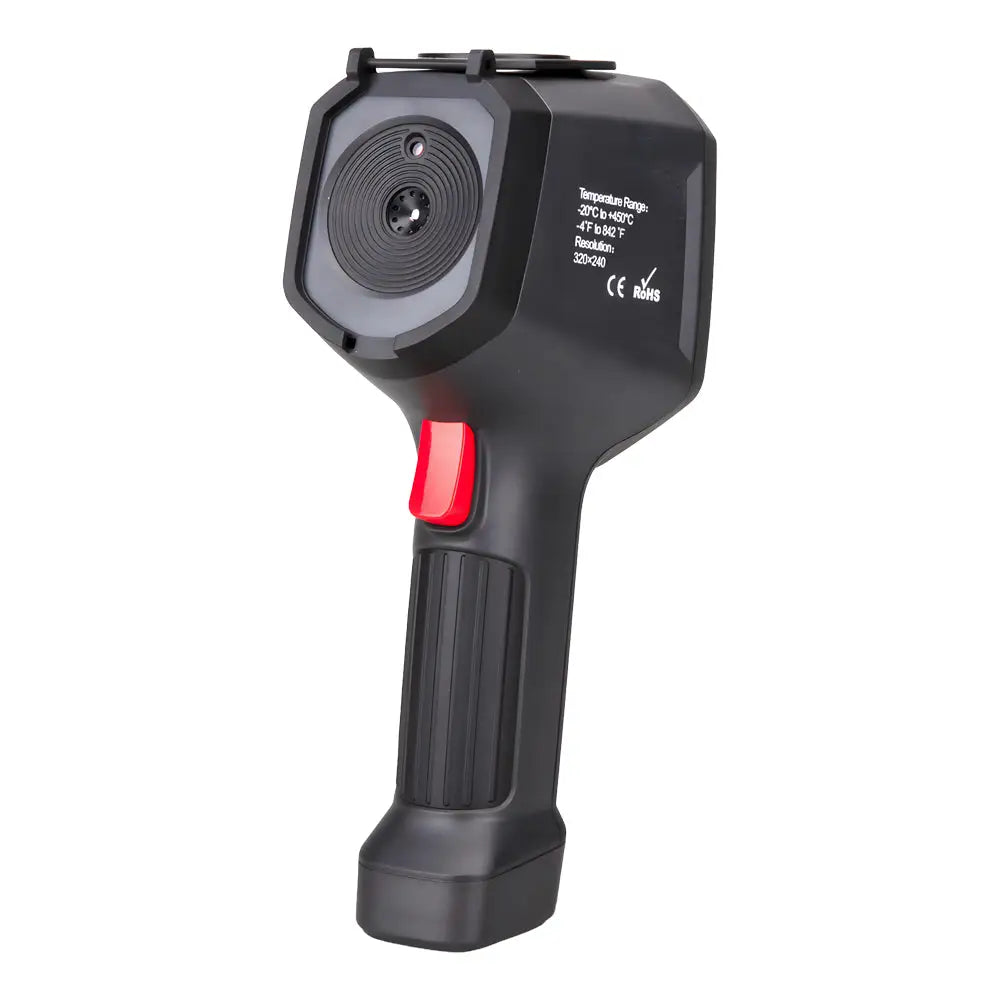

The MaxiIRT IR100 Thermal Imaging Camera is a powerful diagnostic tool that can help you troubleshoot a variety of problems with your vehicle. It features a wide temperature range of -20° C to 450° C (-4° F to 842° F), making it ideal for diagnosing issues with brakes, exhaust, heated seats, HVAC, and more. The dual camera overlay feature allows you to view thermal images over standard images, making it easy to identify problem areas. The IR100 also includes a number of other features that make it a valuable asset for any mechanic
Features:
- Auto-focus for instant thermal imaging
- 320x240 infrared resolution for clear images
- Wi-Fi image transfer to a PC or mobile device
- Adjustable emissivity settings for accurate results
- Choice of five color palettes
- 8GB memory card storage
- 5000mA rechargeable lithium-ion battery
- 0.98s refresh rate for real-time accuracy
- 1-year warranty
Specs:
Display screen: 3.5 inch full view TFT displayInfrared image resolution: 320×240
Visible image resolution: 300,000 pixel
LCD resolution: 640×480
Field angle: 56deg.×42deg.
Thermal sensitivity: 0.07deg.C
The frame rate of thermal images: 9Hz
Focus mode: Fixed
Wave length coverage: 8-14um
Emissivity: Adjustable from 0.01 to 1.00
Color palette: rainbow, iron oxide red, cold color, white hot, black hot
Temperature measurement range: -20 deg.C to 450 deg.C
Storage capacity: Built-in 8G
File format: JPEG
USB: Micro USB 2.0
Power supply: Built in chargeable 26650 battery Detachable
Working time: 3-4 hours
Language: English, Chinese, German, Italian
Automatic power
off time: Selectable: 5 minutes, 20 minutes, not power off automatically
Product size: 256mm×97.2mm×128.9mm
Product weight: 588g
Working temperature: 0
deg.C to 45 deg.C
Storage temperature: -20 deg.C to 60 deg.C
Application:
FirefightingHome inspection
Construction
Manufacturing
Agriculture
Vehicle diagnostics
Brakes
Exhaust
Heated seats
HVAC
Electrical problems
Engine problems
Transmission problems
And more
