Description

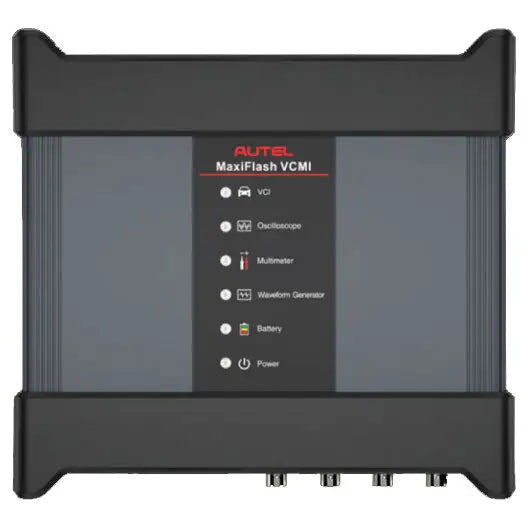

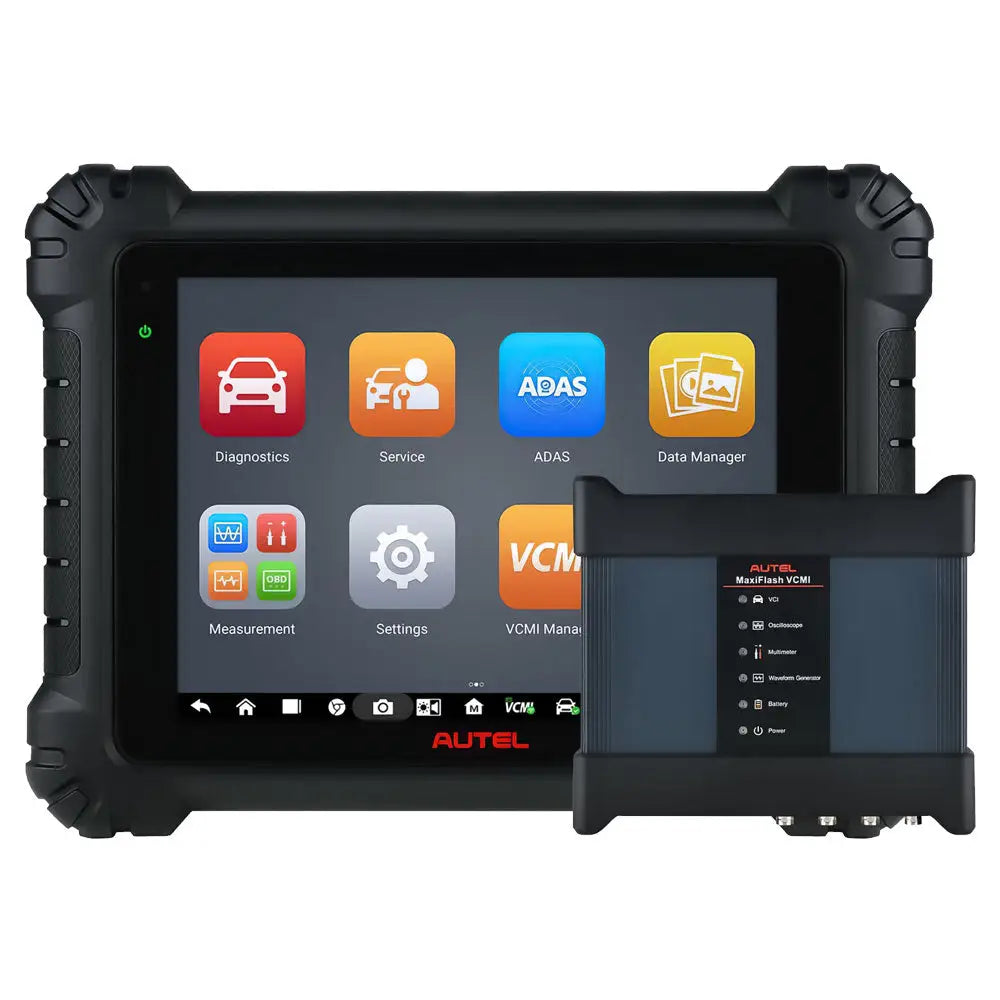

Introducing the MaxiSYS MS919, the diagnostic tablet that does it all. This 9.7-inch touchscreen Android device is powered by an Octa-core processor and has 128GB of memory. It also features the MaxiFlash VCMI, a 5-in-1 communication and testing tool that supports the latest DoIP, D-PDU, and Mega CAN vehicle communication protocols. With the VCMI, you can also function as a 4-channel oscilloscope, waveform generator, multimeter, and Can BUS tester. The MS919 features dynamic topology module mapping for supported vehicles and its Intelligent Diagnostics feature that guides the technician from code to repair to test with detailed repair information and illustrations. The MS919 also comes with a rechargeable Lithium battery that provides 8 hours of continuous use and front and rear cameras.
Features:
- Autel updates provide the latest OE level coverage for more than 80 US Domestic, Asian and European vehicles, including supercar
- Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming
- Automatic system and software updates with real-time push message notifications via the internet
- Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and error
- One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
- Cloud-based Data Manager saves customer and vehicle records, scanner data, and technician notes
Specs:
Operating System: Android 10.0Processor: Qualcomm 660 Octa-core processor (2.2GHzQuad-coreA73 +1.8GHzQuad-core A53)
Memory: 4GB RAM & 128GB On-board Memory
Display: 9.7 inch TFT-LCD with 1536 x 2048 resolution & capacitive touchscreen
Connectivity:
- Dual Wi-Fi (802.11 a/b/g/n/ac 2x2 MIMO)
- BT V5.0 + BR/EDR
- GPS
- USB 2.0 (2 USB TYPE-A ports and a Mini USB port)
- HDMI 2.0
- SD Card (Support up to 256GB)
Camera:
- Rear: 16 Megapixel, Autofocus with Flashlight
- Front: 16 Megapixel
Sensors: Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output:
- Microphone
- Dual Speakers
- 3-Band 3.5 mm stereo/standard headset jack
Power and Battery:
- 15000mAh 3.8V lithium-polymer battery
- Charging via 12V AC/DC power supply with the temperature between 0deg.C and 45deg.Cin
Input Voltage: 12V/1.3A Adapter
Operating Temperature: 0 to 50deg.C (32 to 122deg.F)
Storage Temperature: -20 to 60deg.C (-4 to 140deg.F)
Dimensions (WxHxD): 11.98in x 8.97in x 1.67in
Weight: 1.66kg (3.66lb.)
Protocols:
- Default: DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11897-2, ISO-11897-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)
- After Update: BALLADE HYBRID, BREEZE HYBRID, BREEZE PHEV, CITY - BALLADE, CITY HYBRID - BALLADE HYBRID, CR-V PHEV, CRIDER HYBRID,2021 NEXO(FE), 2021 G70(IK), 2020 - 2021 GV80(JX1), 2020 - 2021Palisade(LX2), 2021 G80(RG3) ,2021 Elantra(CN7), 2020 - 2021 B1-Renegade, D2-Ram 3500

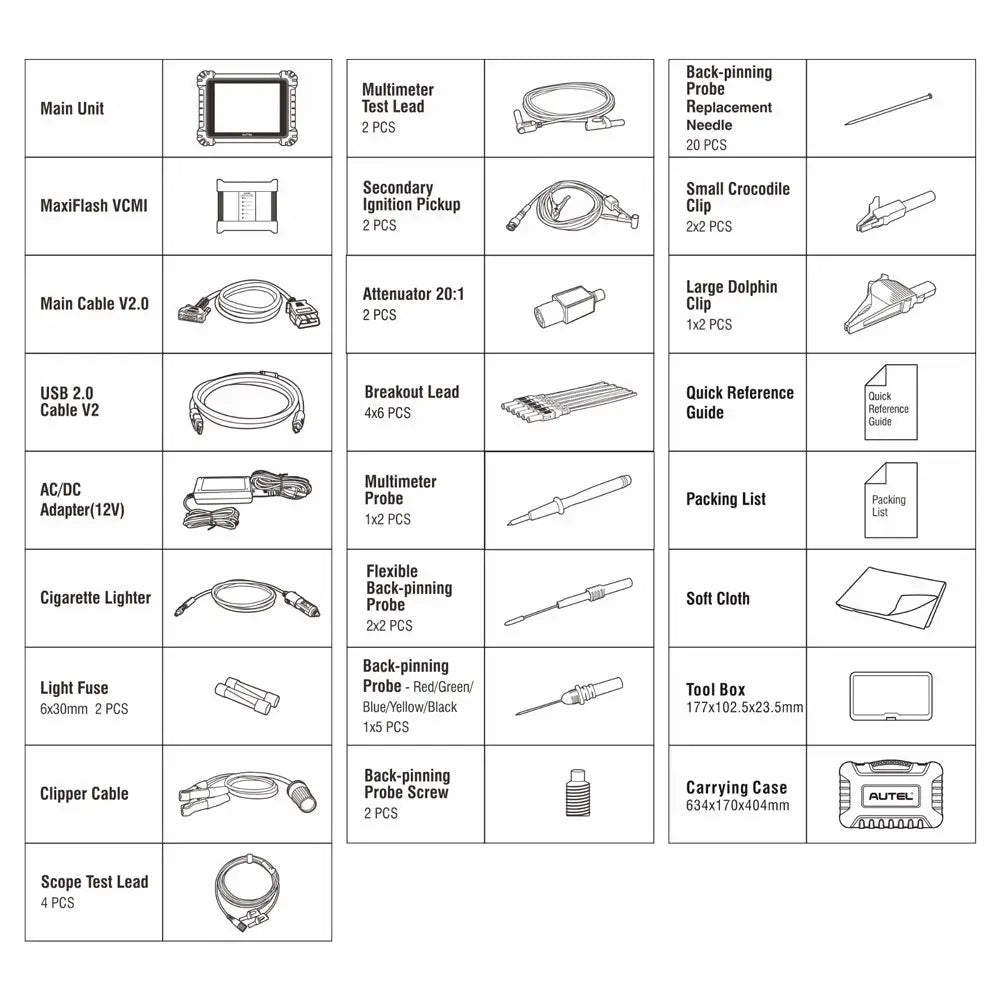

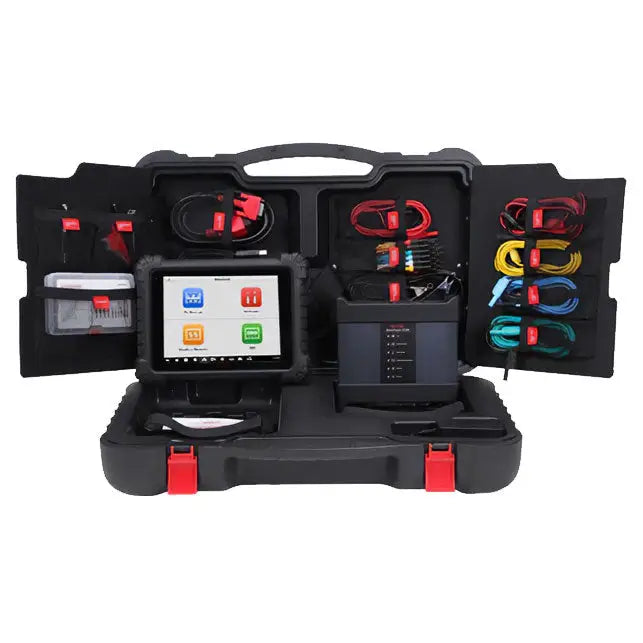

Includes:
1 x MS919 main unit1 x MaxiFlash VCMI
1 x Main cable
1 x USB cable
1 x AC/DC adapter
1 x Cigarette Lighter
1 x Light Fuse
1 x Clipper Cable
1 x Scope Test Lead
1 x Multimeter Test Lead
1 x Secondary Ignition Pickup
1 x Attenuator
1 x Breakout Lead
1 x Multimeter Probe
1 x Flexible Back-pinning probe
1 x Back-pinning probe
1 x Back-pinning probe screw
1 x Back-pinning probe replacement needle
1 x Small crocodile screw
1 x Large dolphine screw
1 x Quick reference guide
1 x Packing list
1 x Soft Cloth
1 x Toolbox
1 x Carry Case
