Description
Spotter Digital Wheel Balancer. Professional digital wheel balancer with automatic distance and diameter entry with width sonar (3D), with new spotter laser system, Full-time Static on-screen, quick release wingnut, and 42" wheel guard standard
The CEMB Digital Wheel Balancer ER72TD is made especially for busy tire shops. This new series has the latest technology in wheel balancing, "Spotter" lasers that pinpoint the exact location of stick-on wheel weights. This is done with little or no chance of operator error when entering dimensions (the primary cause of check spin errors).
Full-Time Static on screen for a perfect balance. The automatic arm measures diameters up to 30in, and automatic entry of the dimensions with width sonar 3D. It comes fully assembled.
Features:
- Professional digital wheel balancer especially designed for tire dealers
- Automatic Distance & Diameter Entry with Width Sonar (3D)
- Fully automatic Spotter Laser System for the best correction possible
- Full-time accuracy with Static unbalance is always displayed on the screen
- LED to light the workspace inside the rim
- New automatic arm to measure diameters automatically up to 30in
- Standard locking with Quick Nut
- Electromagnetic brake for easy weight placement
- Available 110VAC or 220VAC
- Wide working space
- Direct selection ounces/grams
- Optimization program for compensation of rim and tire unbalance
- One Button Split & Hidden Weight Program
Specs:
Power Supply: 110VAC or 220VAC, 50/60 Hz, 1 phBalancing Speed: < 100 rpm
Balancing Accuracy: < 0.1 oz (< 1 g)
Average Cycle Time: 5 seconds
Rim Diameter Capacity: 10in - 30in (265 - 765 mm)
Rim Width Capacity: 1.5in - 20in (40 - 510 mm)
Max. Wheel Weight: 165 lbs (75 kg)
Max. Tire Diameter: 42in (1,067 mm)
Operating Temperature: 32 - 113°F (0 - 45°C)
Shaft Size: 40 mm
Gross Ship. Weight: 370 lbs (168 Kg)
Standard Accessories
Quick Nut: Quick-release wingnut
Cup + Press. Ring: Reverse mounting cup with no mar-ring + Pressure ring
Cones: 4 cones covering hole sizes 1.69" (43mm) to 5.2" (132mm)
2p Truck CK: 2-piece truck cone kit for light truck wheels for the hole from 3.82in (97mm) to 7.09in (180mm)
Caliper: Rim width gauge for measuring wheel width
Shaft: 40mm threaded shaft
Weight Pliers: Can be used as balanced weight hammers, cutting pliers for trimming wheel weights, and pullers to remove the old wheel weights
Test Weight
Allen Wrench: 8mm Allen wrench to mount the 40mm threaded shaft
Wheel Guard
Width Sonar: Automatic Width Sonar reading (3D)
New Gauge: New extended aluminum gauge for diameter measurement of rims up to 30in
Spotter: Spotter Laser System for best correction possible
LED: LED to light the working space inside of the rim
Electric Brake: Electric brake for easy weight placement
Acc. Bundles:

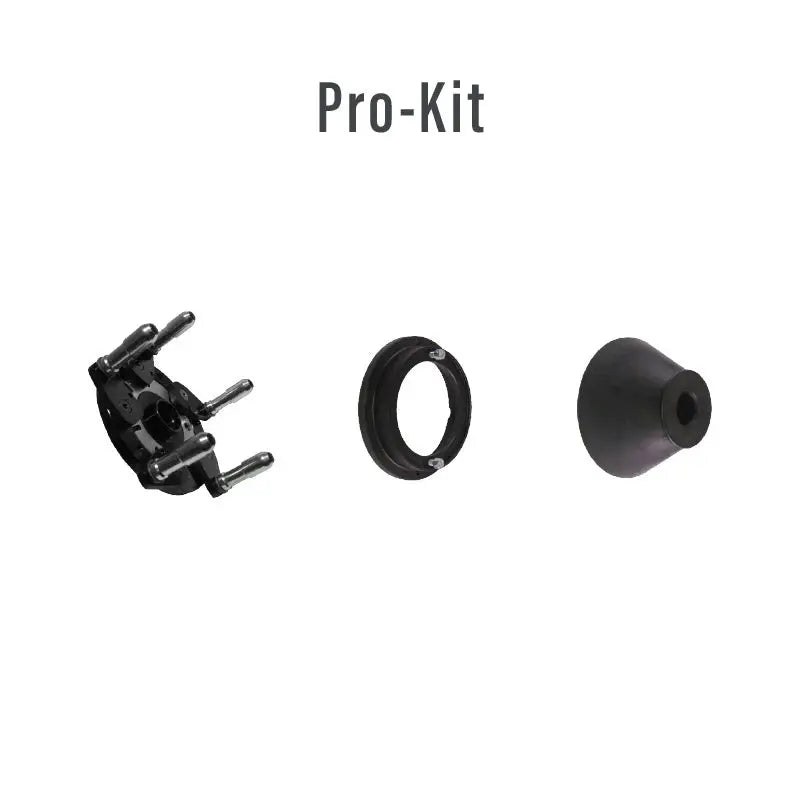

Pro-Kit Bundle - PROKIT: This kit comes with everything you need to do light truck wheels and lug-centric wheels. With the included adapters, you'll be able to get the job done quickly and easily.- Pin Plate Adaptor: 41FFA6478 Manual, 41FFA5298 Pneumatic
- 2-Pieces Truck Cone Kit - 41FF86174
Pro Plus Kit Bundle - PROPLUS: This kit provides you with the necessary adapters to do light truck and lug-centric wheels while also providing a pneumatic wheel lift to lift heavy wheels. Plus, it comes with a storage rack for adapters.
- Pin Plate Adaptor: 41FFA6478 Manual, 41FFA5298 Pneumatic
- 2-Pieces Truck Cone Kit - 41FF86174
- Pneumatic Wheel Lift - 46FL85170
- Accessory Rack - 41FF03151
