Description

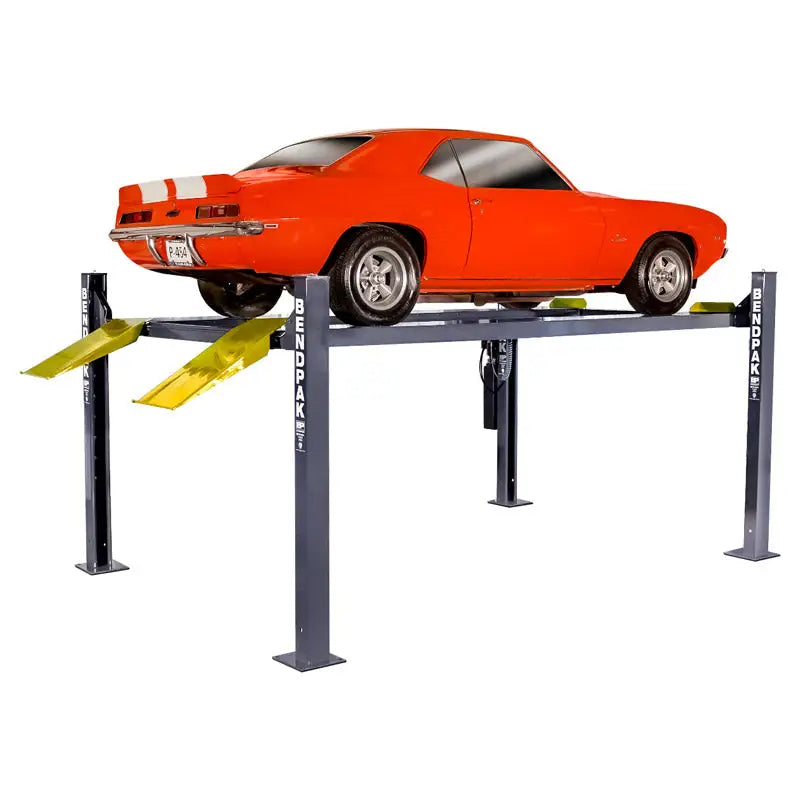

The HD-9's best feature is this lift's space-saving design, making it ideal for vehicle storage in residential garages or commercial buildings. It also makes a great service lift for shops with minimal floor space. No special foundation is required, and installation is simple. Optional casters enable you to roll the lift outside or wherever best suits your needs. The lift fits in a typical parking space to truly maximize valuable floor space. You can also use the lift for detailing, storage of ATVs, snowmobiles, jet skis, golf carts, boats, or anything else that needs to be up off the ground. Utilize the space you now waste above your car, even with a standard 8-foot ceiling. Don't make the mistake of calling this lift a "hobby lift" because it is packed with features that until now were found only on commercial-grade designs. Better yet, it's built and backed by a company with over 40 years in the business. We're proud to have these HD-Series lifts in our lineup because they have one thing in common with our great reputation. Both carry a lot of weight.
Features:
- 9,000-lb. maximum lifting capacity
- CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493
- Freestanding design
- Perfect for parking, storage, and service
- Runways accommodate narrow and standard vehicles
- Runways include a rail-kit for optional accessories
- Electric/hydraulic power system
- Single hydraulic cylinder mounted underneath runway
- Fully enclosed lifting cables, safety locks, and sheaves
- Internal anti-sway slider blocks in each column

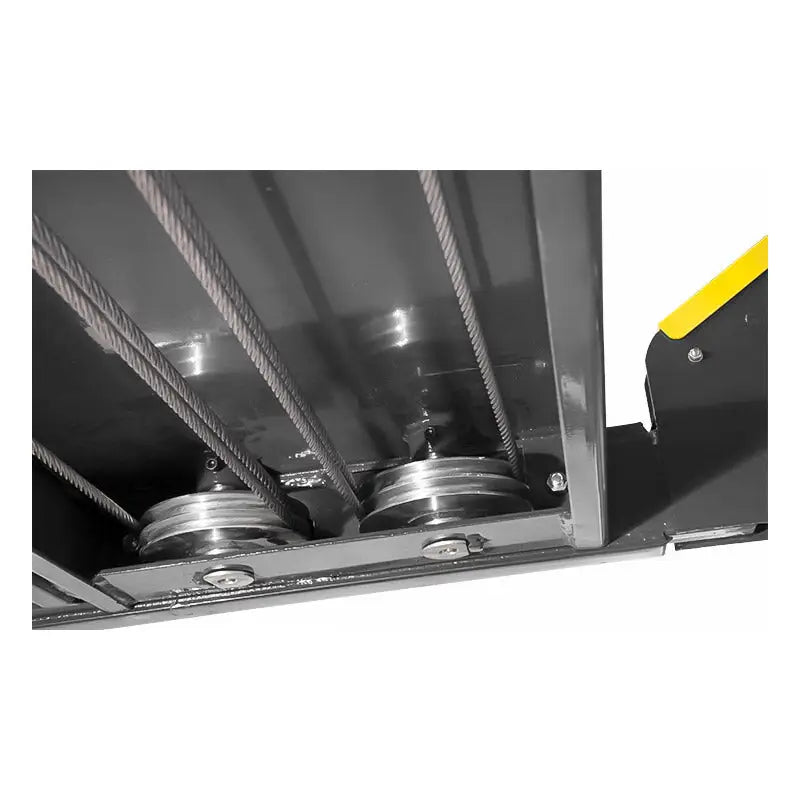

- Oversized self-lubricating cable rollers
- Features heavy-duty 3/8in aircraft cable
- Rugged 1.25in roller axles
- Multi-position safety locks in each column
- Adjustable lock ladders
- Runways feature non-skid surface
- Push-button pneumatic safety release
- Independent backup slack-cable safety latches
- Customizable power unit location
- Removable approach ramps for additional drive-under clearance
- Longer approach ramps for low ground clearance vehicles
- Optional drive-thru ramps available
- Optional drip trays available
- Optional solid deck available to increase storage capacity
- Optional 4,500-lb. air / hydraulic rolling jacks available (Model RJ-45)
- ETL Approved
Specs:
Style: Standard Length Runways, Standard WidthLifting Capacity: 9,000 lbs. (4,082 kg)
Minimum Runway Height: 4.5in (114 mm)
Maximum Rise: 70in (1,778 mm)
Maximum Lifting Height: 74.5in (1,892 mm)
Time to Full Rise: 45 seconds
Width Overall: 110.25in (2,800 mm)
Outside Length: 174in (4,420 mm)
Overall Length: 200in (5,080 mm)
Height of Columns: 88in (2,235 mm)
Width Between Columns: 100.25in (2,546 mm)
Drive-Thru Clearance: 86.5in (2,197 mm)
Runway Width: 19in (483 mm)
Length of Runways: 164in (4,166 mm)
Width Between Runways: 37.5in (953 mm) or 44.375in (1,127 mm)
Runway Centerline: 56.5in (1,435 mm) or 63.375in (1,610 mm)
Outside Edge of Runways: 75.5in (1,918 mm) or 82.375in (2,092 mm)
Rated Capacity: 115in (2,921 mm)
75% Capacity: 100in (2,540 mm)
50% Capacity: 85in (2,159 mm)
25% Capacity: 70in (1,778 mm)
Locking Positions: 12
Lock Spacing: Every 4in (102 mm)
Power Unit: 220 VAC / 60 Hz / 1 Ph
Shipping Dimensions: 168in x 22in x 41in
Noise: 45 dB
