Description

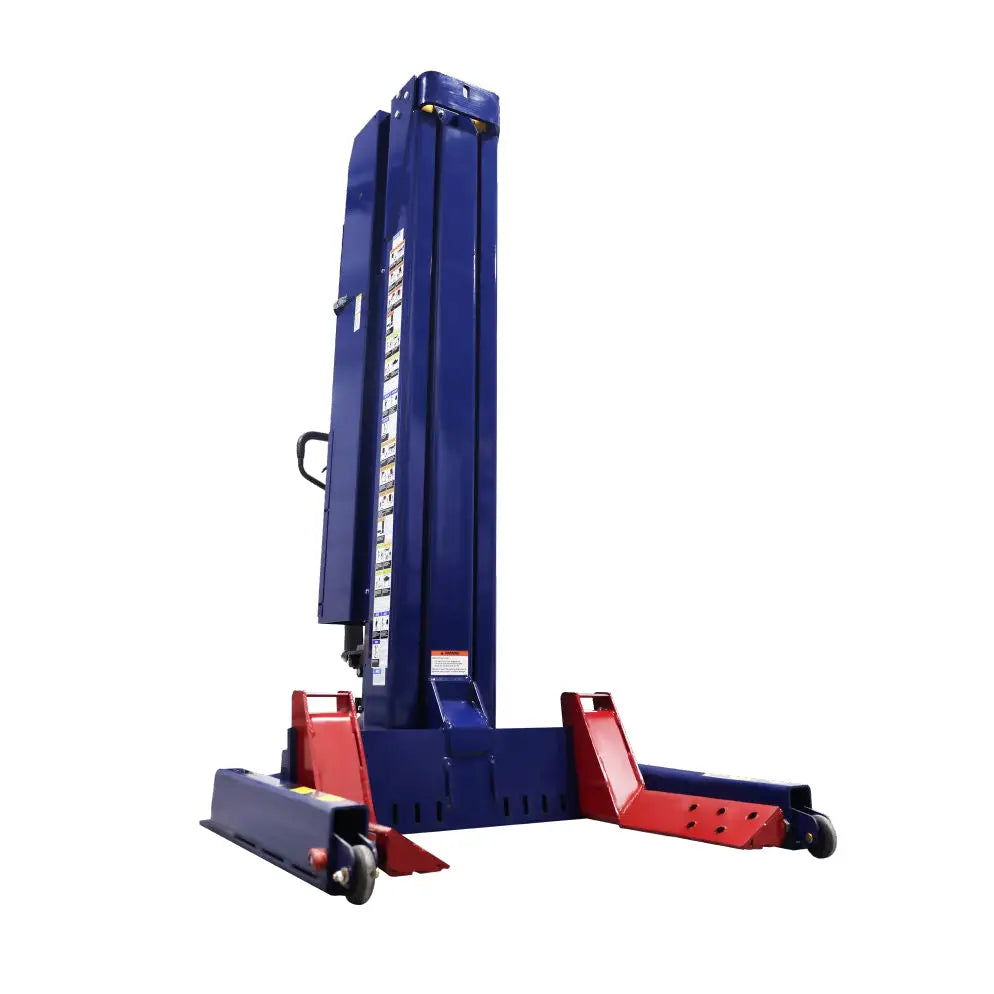

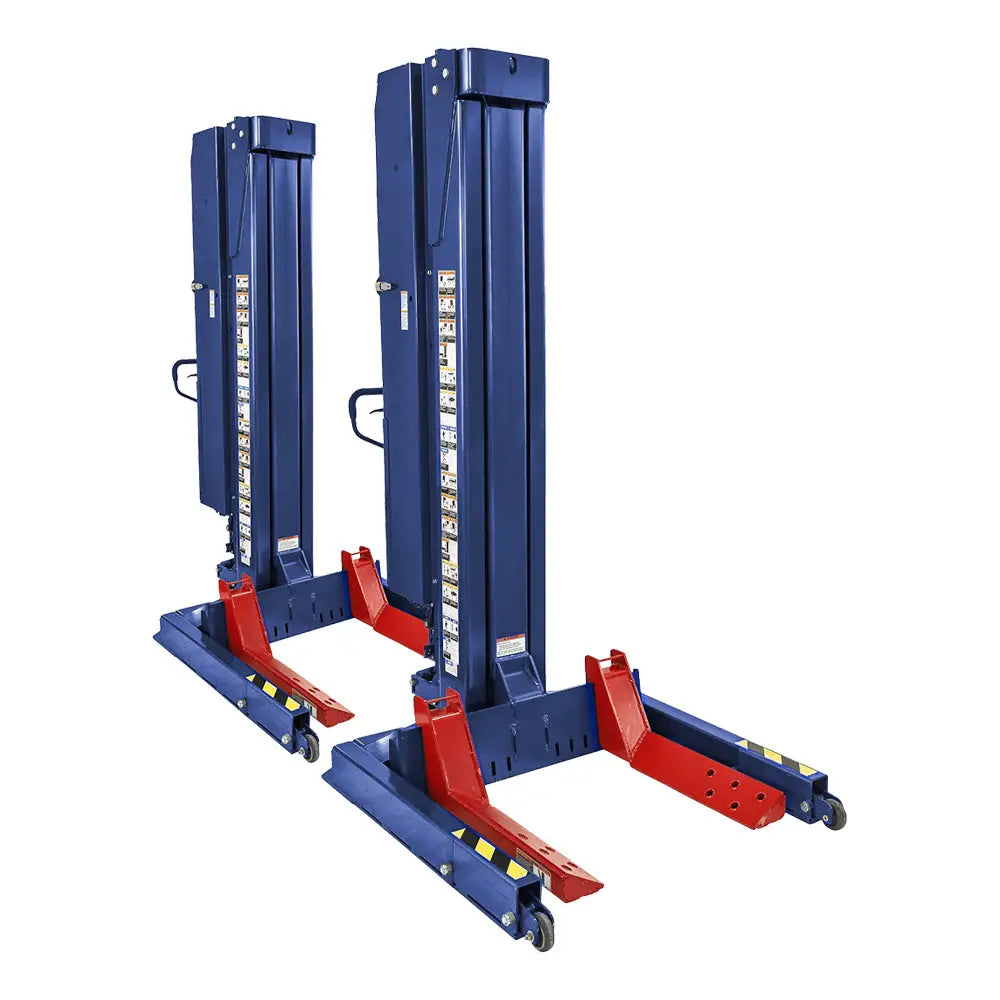

The 12.5K Mobile Column Lift (Model # CLHM-125-XF) by Challenger is designed for maximum versatility and ease of use in heavy-duty vehicle maintenance. With extended 22in forks, it easily handles vehicles with recessed or dually tires. Powered by a 24v rechargeable battery system, the lift is fully mobile and can be wirelessly controlled from any column. It accommodates wheel diameters from 5 to 24.5-inches, making it ideal for a wide range of vehicles within its rated capacity. Perfect for shops needing flexible, efficient lifting solutions.
Features:
- 12,500 lbs. capacity per column for heavy-duty vehicles.
- 22in extended forks for full tire engagement.
- Accommodates wheel diameters from 5in to 24.5in.
- Rechargeable battery-powered with a 110v charging system.
- No air is required for operation, simplifying setup.
- Wireless control from any column for clutter-free operation.

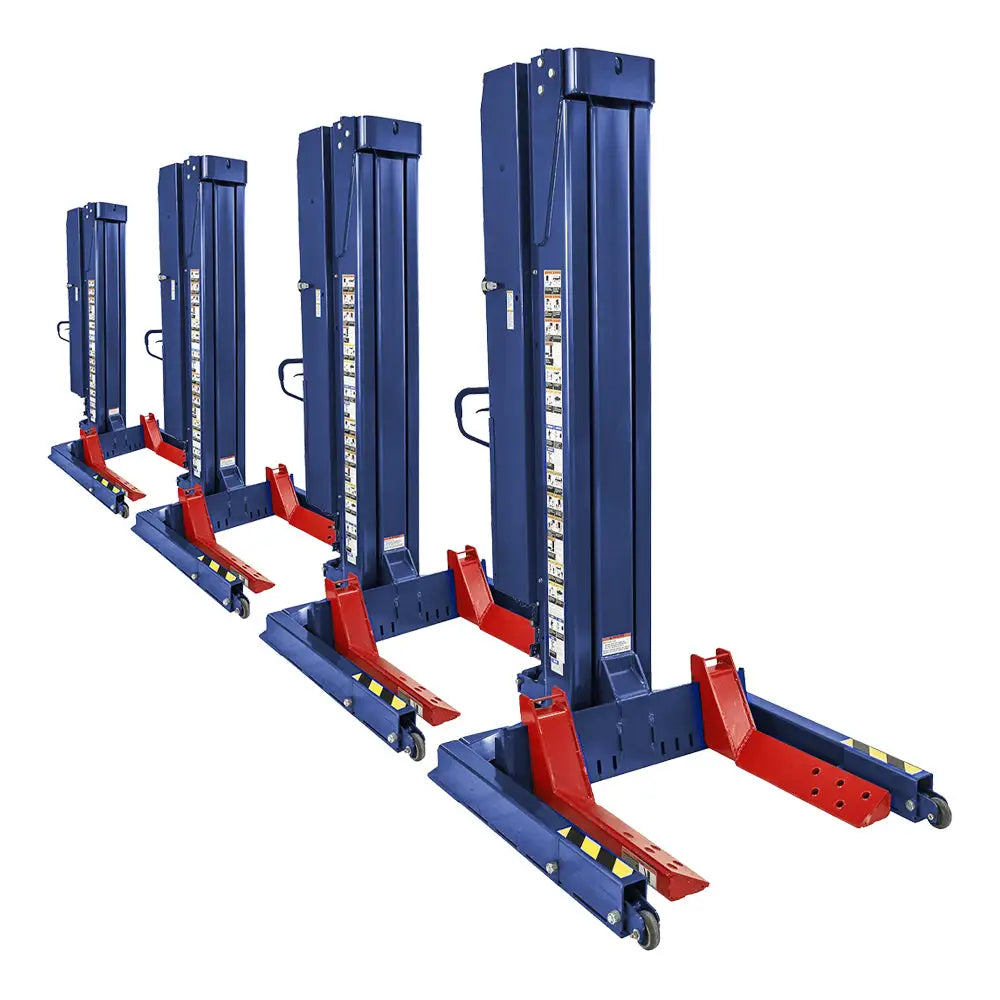

- Expandable system supports up to eight columns.
- Compatible with 14K/19K models for tailored lifting.
- Versatile, scalable lifting solution for automotive shops.
- ALI Certified for safety and reliability.
Specs:
Lifting Capacity: 12,500 lbs.Height of Lift Unit: 881⁄2in
Overall Height at Full Rise: 13ft 11⁄8in
Width of Lift Unit: 441⁄4in
Length of Lift Unit: 65.3in
Max. Lift Height 4+ Units: 69in
Max. Lift Height (with 2 units): 32in
Wheel Diameter Min. 5in - Max.: 241⁄2in
Max. Hydraulic System Operating Pressure: 2,100 psi
Lift Speed (Max. Load): 56.7in per minute
Weight of Lift Unit: 1,557 lbs.
Footprint of Lift Unit: 719 sq. in.
Ground Pressure/Lift (Max. Load): 19.6 psi
Turning Radius of Lift Unit: 54in
Operating Peak Power: 4HP
Operating Voltage: 24 VDC Nominal
Charger Voltage Required: 120-240 VAC @ 50-60 Hz
Charger Amps Required: 2.8 amps
ALI Certified: Yes
Similar Products
CLHM-140, CLHM140 (14K Models)
CLHM-190, CLHM190 (19K Models)
Ref Name
Heavy-Duty Vehicle Lift
Wireless Mobile Lift System
Application:
TrucksBuses
Commercial Vans
Heavy Equipment
Fire Trucks
For Businesses
Fleet Maintenance
Truck Repair
Bus Service
Heavy Equipment Lifting
Commercial Vehicle Shops
