Description
Challenger's 14,000 lb. closed-front drive-on 4-post lift features a low approach angle and wide runways for easy approach. It also has one of the highest rises in the industry and durable column construction. We designed the 4P14 for versatility, with louvered approach ramps as well as in two lengths. A range of optional accessories can help you accommodate just about anything that comes in for service.
Features:
- 14,000 lb. lift capacity
- Closed front design with either 182.5in or 210in / extended wheelbase to accommodate long vehicles
- 20in wide runways aid for drive-on confidence
- Louvered approach ramps provide superior traction for driving vehicles on and off-ramp
- 78in rising height, among the highest rise in the industry, provides maximum headroom for working underneath vehicles
- 14-level locking positions, allowing ergonomic working height for technicians to increase productivity and minimize fatigue
- Powder coat finish provides long-lasting durability
- Available with red or blue columns

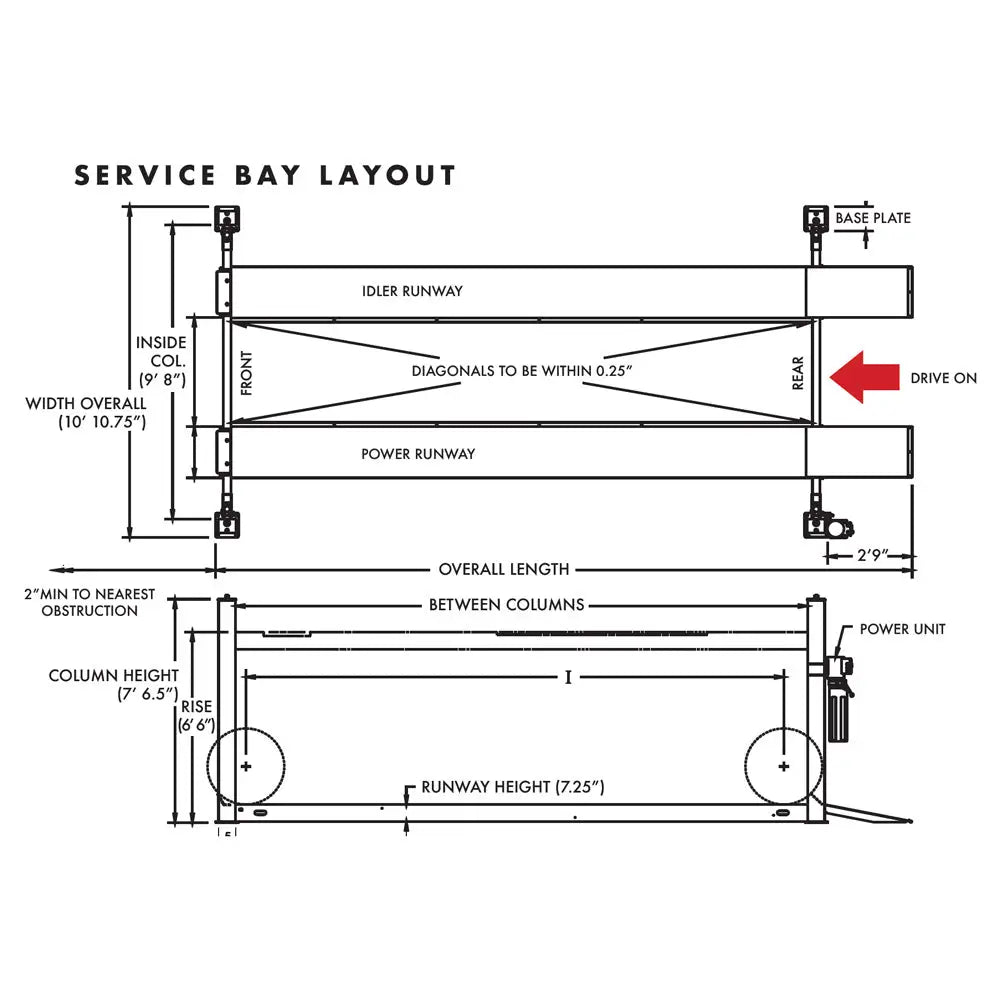

Specs:
Lifting Capacity: 14,000 lbs.Open or Closed Front: Closed
Rise Height: 78in
Overall Width: 130.75in
Inside Columns: 116in
Height of Columns: 90.5in
Width of Runways: 20in
Height of Runways: 7.25in
Width Between Runways: 40in / 43in
Air Supply Required: 90-120 psi
Motor / Voltage: 2HP, 208v-230v, 60Hz, 1Ph
Speed of Rising: 90 s
ALI/ETL Certified: Yes
Colors Available: Black
4P14EFX
Max. Wheelbase: 182.5in
Overall Length: 245.75in
Between Columns: 196in
Min. Recomm. Bay Size: 12ft x 24ft
4P14XFX
Max. Wheelbase: 210in
Overall Length: 273.25in
Between Columns: 223.5in
Min. Recomm. Bay Size: 12ft x 26ft
