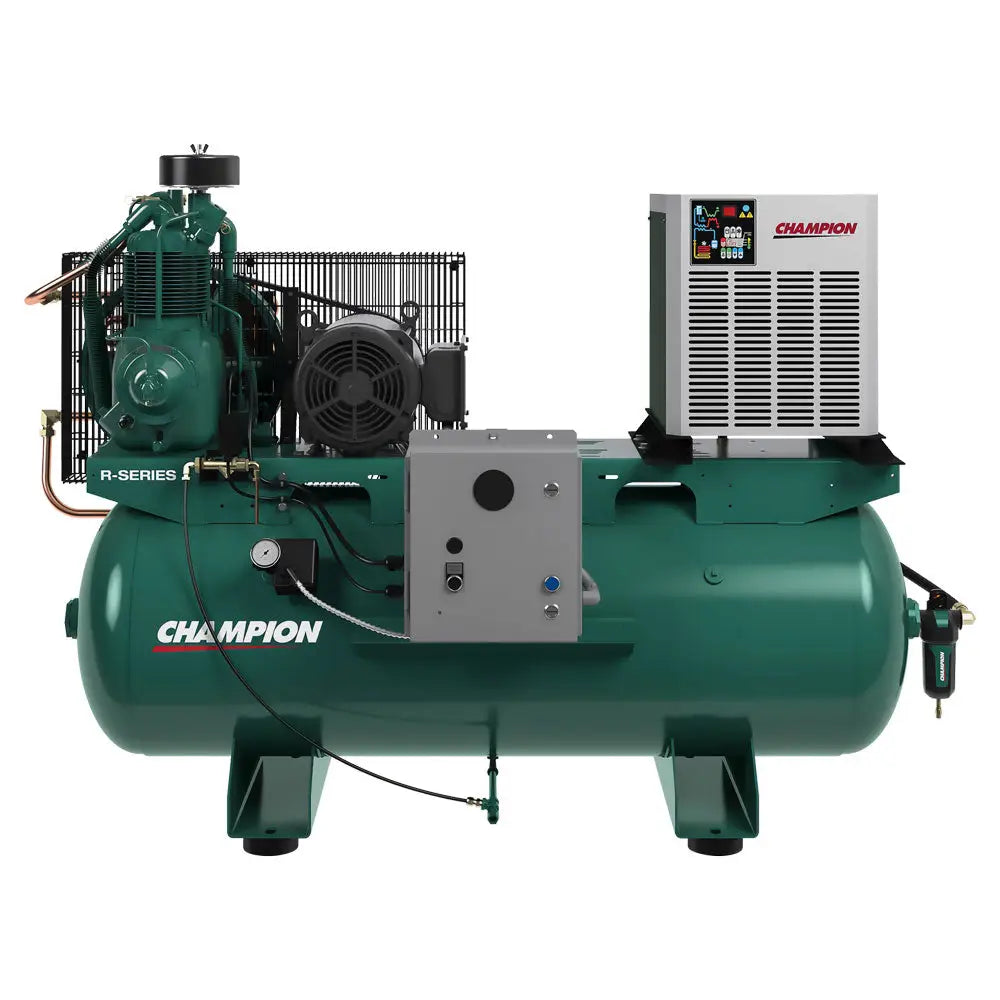

Champion 7.5HP R Series Horizontal Air Compressor - 80 Gallon Tank with R15 Pump (Model HR7F8) - Ideal for Auto Shops, Construction Sites & Industrial Applications
$2178
$3960
Safe 45%
Champion 7.5HP R Series Horizontal Air Compressor - 80 Gallon Tank with R15 Pump (Model HR7F8) - Ideal for Auto Shops, Construction Sites & Industrial Applications
$2178
$3960
45% Off
Delivery & Return: Free shipping on all orders over $50
Estimated Delivery: 10-15 days international
11 people viewing this product right now!
SKU: 78855526
Guranteed safe checkout
Description
Looking for a reliable air compressor that will last for years? Look no further than the Champion HR7F-8. This high-performance unit is perfect for a variety of applications and environments. This compressor is built to last with a 7.5hp motor and a 60-gallon air receiver.
Features:
- Load-less starting / via centrifugal unloader for lower energy costs and less wear on the drive motor
- Mounted Control Panel with Magnetic Starter
- ASME inter-stage pressure relief valve for protection
- ODP NEMA 1760 RPM electric motor
- 10 Micron industrial grade intake filter
- ASME / NB certified receivers
- 0-300 PSIG air pressure gauge on the tank
- Dryer Option Available, Model XCNC32
Specs:
Model Number: HR7F-8Prod. Configuration: Simplex
Tank Configuration: Horizontal
Pump Model: R15
Pump RPM @ 175 PSI: 949
Tank Size: Gallons: 80
ACFM @ 80 PSIG (m3/hr @ 5.5 BAR): 23.7 (40.3)
ACFM @ 125 PSIG (m3/hr @ 8.6 BAR): 23 (39.1)
ACFM @ 175 PSIG (m3/hr @ 12 BAR): 22.3 (37.9)
Voltage:
- 1 Phase: 208 / 230V
- 3 Phase: 208 / 230 / 460 / 575V
Est. Ship Weight: Lbs.: 630
Control Panel Level1 - NEMA 1: Standard
Panel Mounting: Included
California Code: Standard
Tank Configuration: Horizontal
Pump Model: R15
Pump RPM @ 175 PSI: 949
Tank Size: Gallons: 80
ACFM @ 80 PSIG (m3/hr @ 5.5 BAR): 23.7 (40.3)
ACFM @ 125 PSIG (m3/hr @ 8.6 BAR): 23 (39.1)
ACFM @ 175 PSIG (m3/hr @ 12 BAR): 22.3 (37.9)
Voltage:
- 1 Phase: 208 / 230V
- 3 Phase: 208 / 230 / 460 / 575V
Est. Ship Weight: Lbs.: 630
Control Panel Level1 - NEMA 1: Standard
Panel Mounting: Included
California Code: Standard
XCNC32 (Optional Mounted Dryer)
Inlet Flow (scfm / Nm³/h): 32 / 54
Pressure Drop (psi): C/F
Voltage: 115/1/60
In/out Connections: 1/2" FNPT
Power Consump- Tion kw: 0.49
Refrig- Erant: R-134A
Dimensions H × W × D Inches (mm): 18 × 16 × 18 (457 × 406 × 457)
Weight Lbs (kg): 62 (28)
Inlet Flow (scfm / Nm³/h): 32 / 54
Pressure Drop (psi): C/F
Voltage: 115/1/60
In/out Connections: 1/2" FNPT
Power Consump- Tion kw: 0.49
Refrig- Erant: R-134A
Dimensions H × W × D Inches (mm): 18 × 16 × 18 (457 × 406 × 457)
Weight Lbs (kg): 62 (28)
