Description

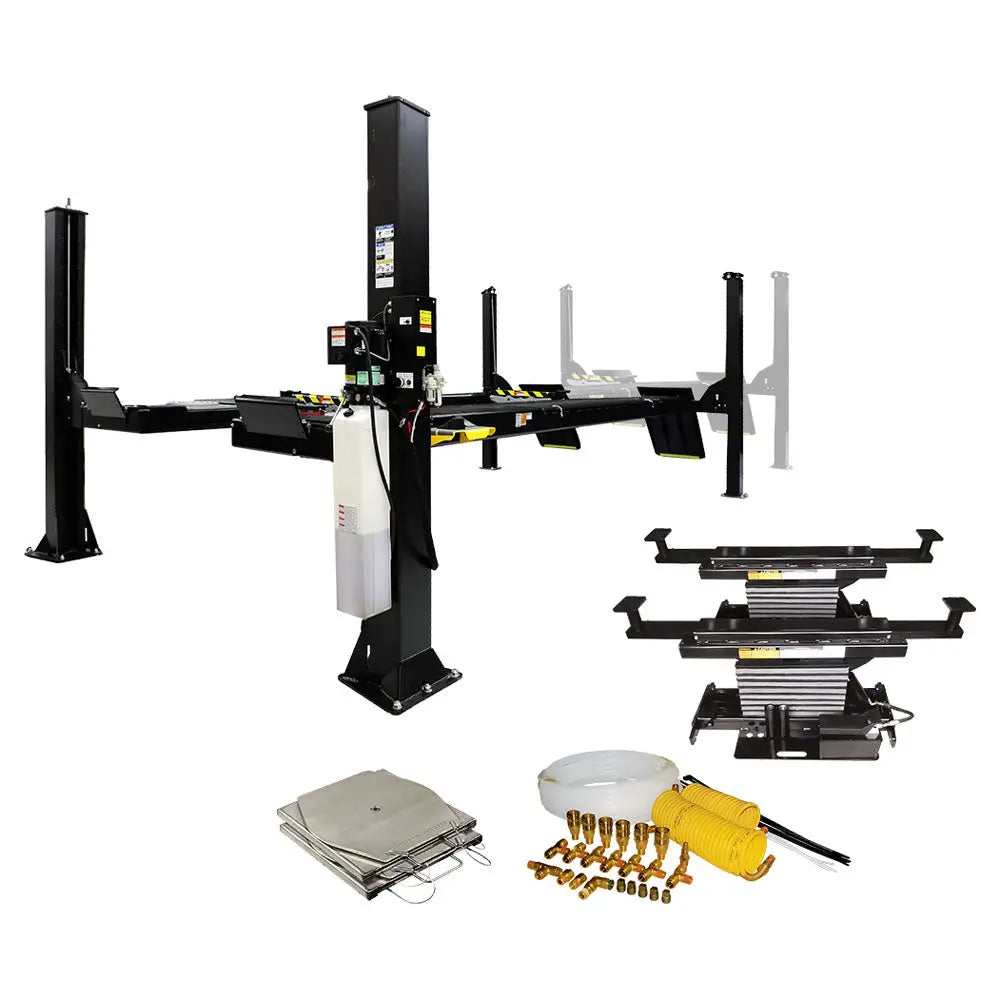

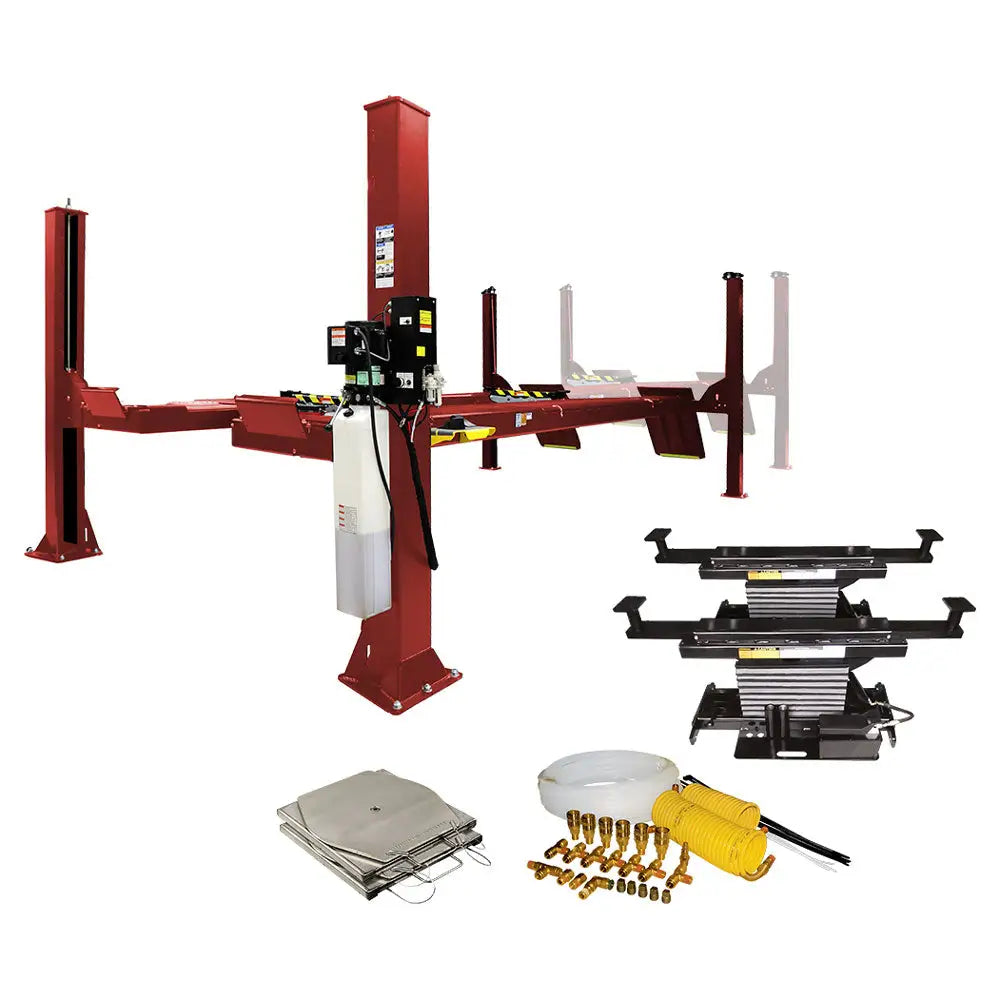

Looking for an extra-length alignment lift for your shop? Check out the AR4115XAO, 15,000 lb extra length 4-Post Alignment Lift! This open-front 195.25-inch Max 2-Wheel Alignment Lift comes with two 7.5K Rolling Jacks, two Stainless Turntables, a pair of Work Steps, and an Air Line kit. With all these great features, this Lift is perfect for any shop!
Features:
- New runway racks are available with open and closed front designs for better ergonomics and easy access to adjustment points.
- Thanks to an expanded 4-wheel alignment wheelbase and improved alignment capabilities, you can now service large wheelbase autos.
- Compatible with the newest imaging alignment technologies currently available.
- The optional alignment equipment includes rolling jacks, an internal airline system, and stainless steel turn plates.
Specs:
Lifting Capacity: 15,000 lbs.Open or Closed Front: Open
Overall Length: 277in
Overall Width: 142in
Inside Columns Front: 120.75in
Inside Columns Rear: 125.5in
Between Columns: 222.5in
Height of Columns Front: 99.25in
Height of Columns Rear: 98in
Height of Runways: 7in
Width of Runways: 22.375in
Width Between Runways: 40.625in
Max. Wheelbase: 210.5in
Rise Height: 78in
Max. 2 Wheel Alignment: 195.25in
Max. 4 Wheel Alignment: 68in - 158in
Air Supply Required: 90-120 psi
Motor / Voltage: 2HP, 208v-230v, 60Hz, 1Ph
Rise Time: 85 s
Min. Recomm. Bay Size: 14ft x 26ft
ALI/ETL Certified: Yes
Colors Available: Red, Blue, Black
Ref No.:
CRA14N202YBL/RD
RA14XAO
Includes:
2 x 7.5K Jacks2 x Stainless Turntables
1 x Air Line Kit
2 x Work Steps (Black)
