Description

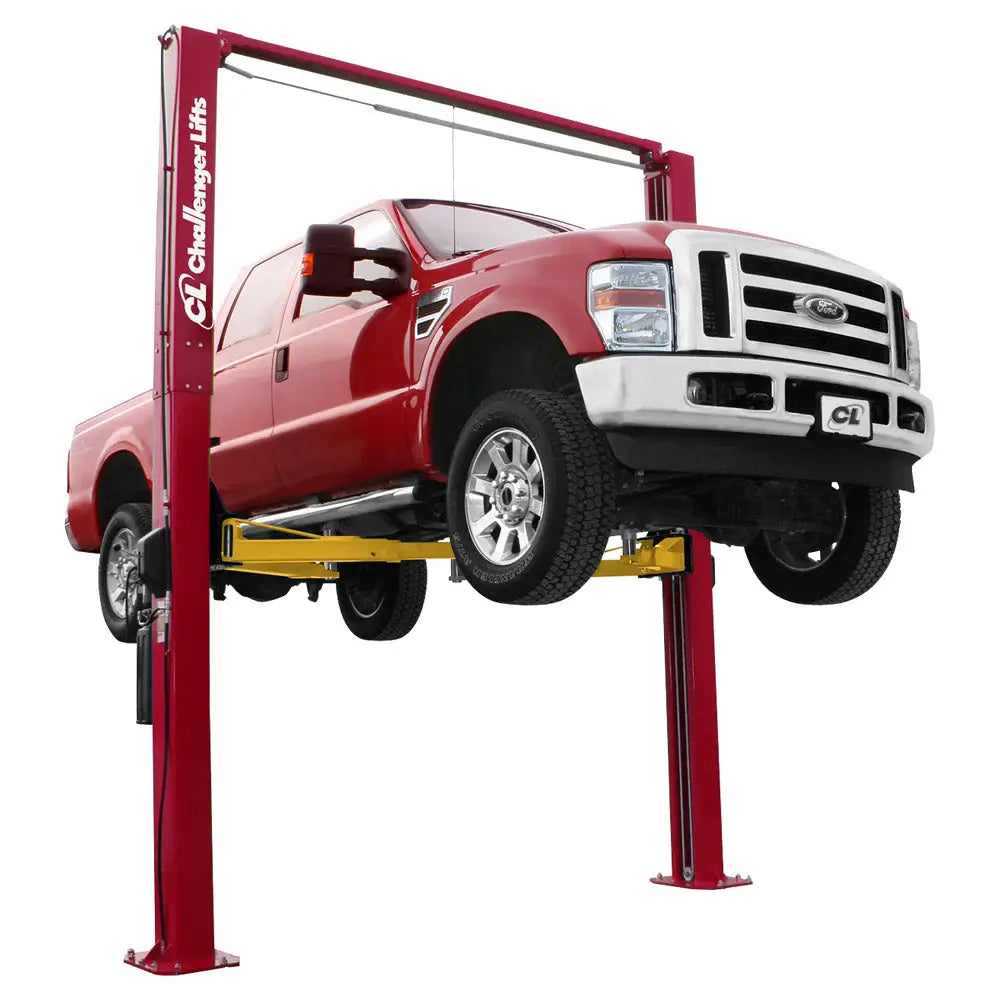

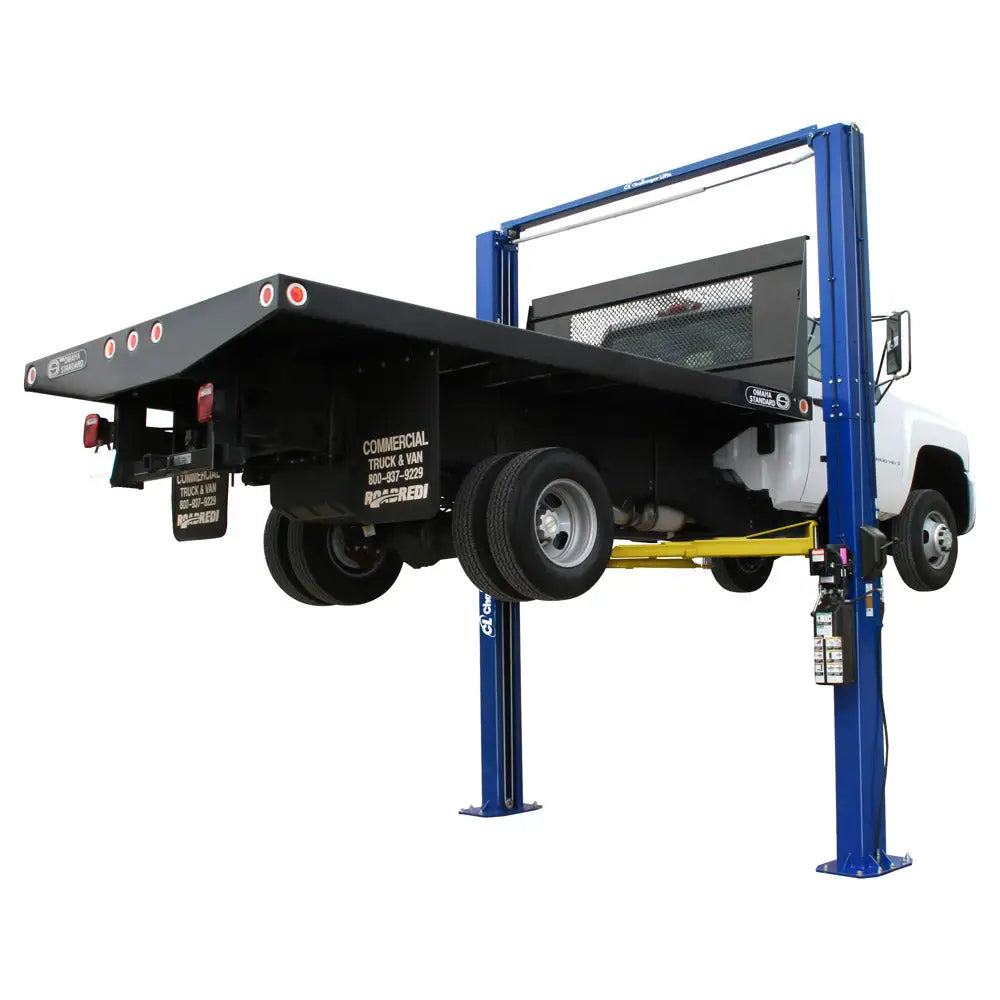

Challenger’s LE12 is the perfect economic 2-post lift for servicing trucks and other vehicles up to 12,000 lbs. Heavy-duty 2-stage front and 2-stage rear arms offer symmetric lifting capability. Also, adjustable column height accommodates higher profile vehicles while providing ample servicing headroom. The LE12 comes standards with stack adapters. Accommodate higher profile vehicles with optional 2-foot column extensions.
*Optional 2' column height truck lift extensions that accommodate even higher profile vehicles. Must order both E12 2 post vehicle lift and Part # E12EH2 for new lift purchases or E12EH2 for the addition of 2' height extension to an existing E12 truck lift. Includes (2) height extensions, hose extension kit, and new cables.
Features:
- 12,000 lb. lift capacity
- Heavy-duty 2-stage arms enable a wide range of symmetric lifting
- Single point mechanical lock release allows the technician to disengage both columns simultaneously
- Heavy-duty polyurethane screw pads accommodate a wide range of recommended lifting points
- Adjustable column height accommodates higher profile vehicles and provides maximum headroom to work underneath vehicles
- Padded overhead shut off system prevents vehicle damage
- Powder coat finish provides long-lasting durability
- Plated arm restraints and arm pins inhibit rust and provide long-lasting durability
- Standard dual integrated rubber door guards help protect vehicle panels from inadvertent damage

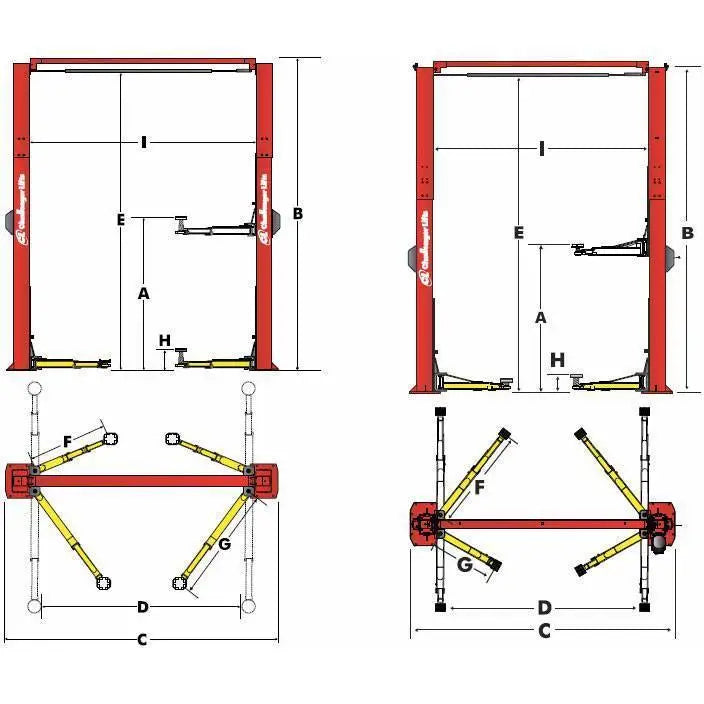

Specs:
Lifting Capacity: 12,000 lbs.Arms: 2-stage front/2-stage rear
Lifting Configuration: Symmetric
Rise Height: 77.75in
Overall Height: 166in/175in
2’ Height Extension Available: Yes
Overall Width: 139.75in
Drive-Thru Clearance: 103in
Floor to Overhead Switch: 159.5in/168.5in
Minimum Arm Reach: 35.75in
Maximum Arm Reach: 54.5in
Screw Pad Height: 5.25in-6.75in
Inside Columns: 115in
Ceiling Height Required: 167in/176in
Motor / Voltage: 2HP, 208v - 230v
Speed of Rising: 61 s
ALI/ETL Certified: Yes
Colors Available: Red, Blue
Ref No.
E12
Includes:
4 x 3in Stack Extensions2 x 6in Stack Extensions
2 x Organizer Racks with hardware
