Description

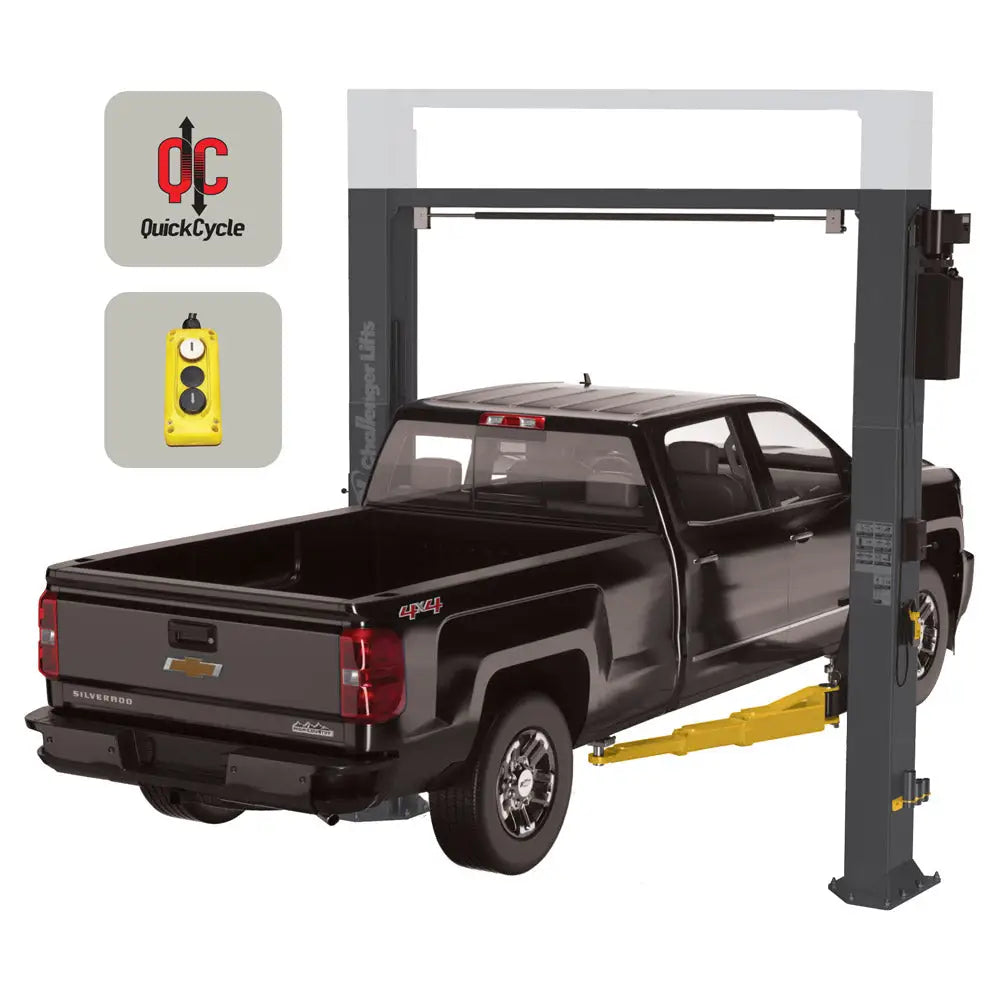

Introducing the CL12A-LC, Challenger's fastest low-ceiling two-post lift model with an impressive 38-second speed of rise. Specifically designed for shops with ceilings under 12 ft, this ALI Certified and Professional Approved lift offers a secure 12,000 lbs. capacity. Its unique +6in to +12in width adjustment during installation provides unmatched flexibility. Featuring 3-stage arms, premium telescoping foot-pads, and EV Service Ready capability, this lift is a reliable choice for diverse automotive needs. Elevate your workshop's efficiency with the Quick Cycle hydraulic enhancement, saving 30% on rise and descent time, and the convenience of Dual Pendant Controls for precise vehicle spotting. Trust Challenger for unparalleled low-ceiling efficiency.
Quick Cycle
The Quick Cycle hydraulic enhancement increases lift service efficiency by saving 30% rise and descent time. Boost the productivity and profitability of your shop by servicing more vehicles in the same amount of time.

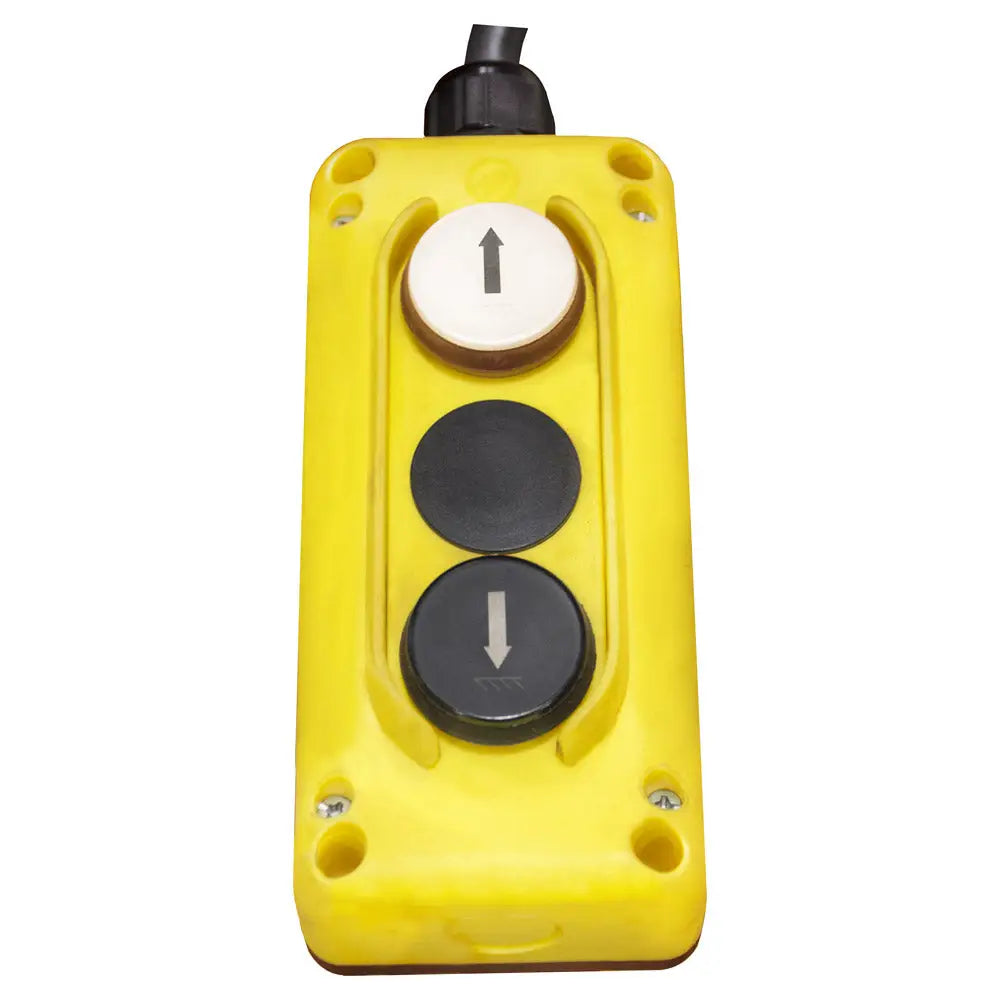

Dual Pendant Controls
Always within technician reach when small spotting adjustments matter, dual pendant controls expedite vehicle spotting from either column by providing an unobstructed view to lifting points.
Features:
- CL12A-LC: Fastest 2-post lift, 38s rise, ideal for low ceilings.
- ALI Certified, Professional Approved, 12,000 lbs. capacity for secure lifting.
- +6in to +12in width adjustment for unmatched installation flexibility.

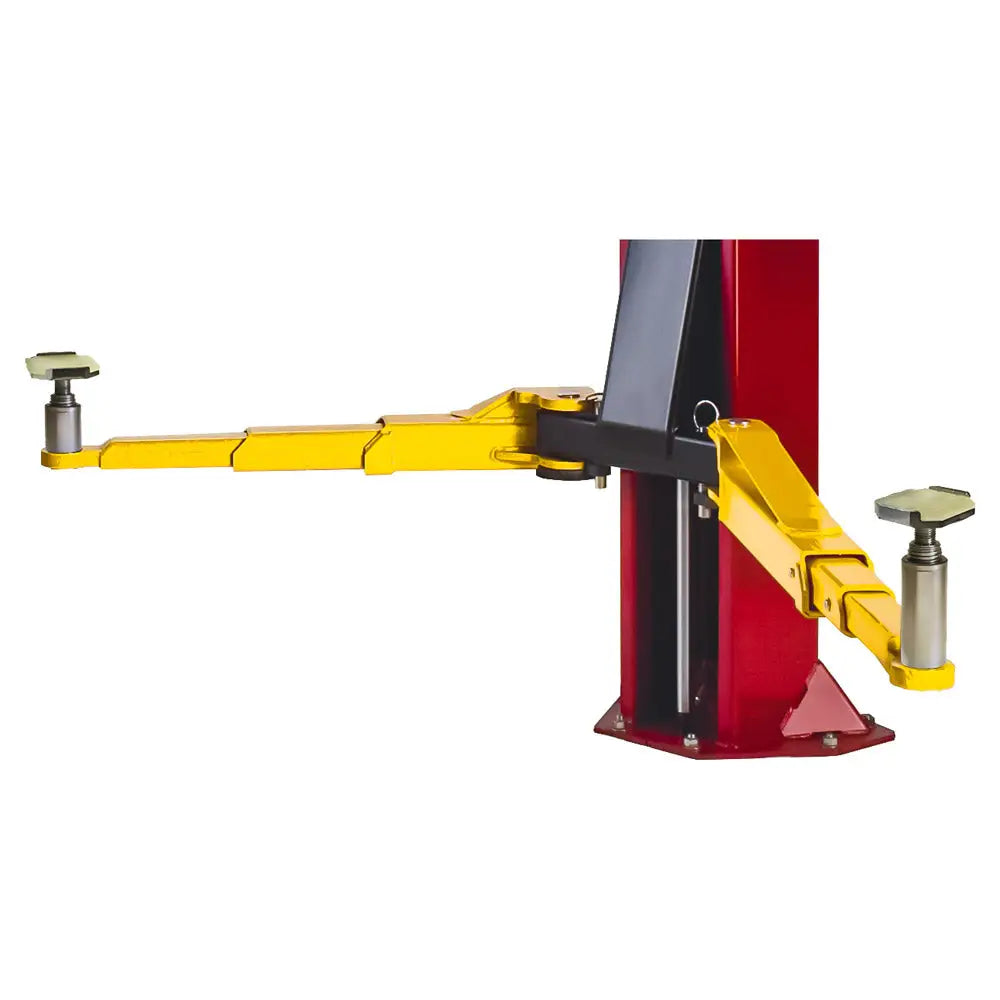

- 3-stage arms, premium foot-pads, EV Service Ready for diverse automotive needs.
- Quick Cycle: Save 30% on rise and descent time, boost efficiency.
- Dual Pendant Controls: Precise spotting, unobstructed view, technician-friendly.
- Elevate workshop efficiency with Challenger's trusted low-ceiling solution.
Specs:
Configuration: SymmetricalLifting Capacity: 12,000 lbs.
Lifting Configuration: Symmetric
Arms: 3-stage front/3-stage rear
Rise Height: 80.75in
Overall Height: 11ft 11in
Adjustable Width Overall: 142in / 148in / 154in
Drive-Thru Clearance: 103.5in, 109.5in or 115.5in
Floor to Overhead Switch: 11ft 4.5in
Arm Reach (Min.): 27.5in
Arm Reach (Max.): 59in
Screw Pad Height *: 4.75in - 6.625in
Inside Columns: 114.5in / 120.5in / 126.5in
Motor / Voltage: 3HP, 208v-230v, 60Hz, 1Ph
Speed of Rise (approximate): 38s
Ceiling Height Required: 12ft Minimum
Colors Available: Red, Blue, Black
ALI® Certified: Yes
Ref No.
CL12-LCQCDPC (Older Model)
Similar Products
CL12A-LC (Low-ceiling w/o Quick Cycle & Dual Pendant)
CL12A (Standard Model)
CL12A-1 (1ft Ext Model)
CL12A-2 (2ft Ext Model)
Ref Name
Fast Low-Ceiling 12K Lift
ALI Certified 12K Low-Ceiling Lift
Quick Cycle 2-Post Lift
Application:
Auto RepairDealerships
Service Centers
Workshops
Garages
