Description

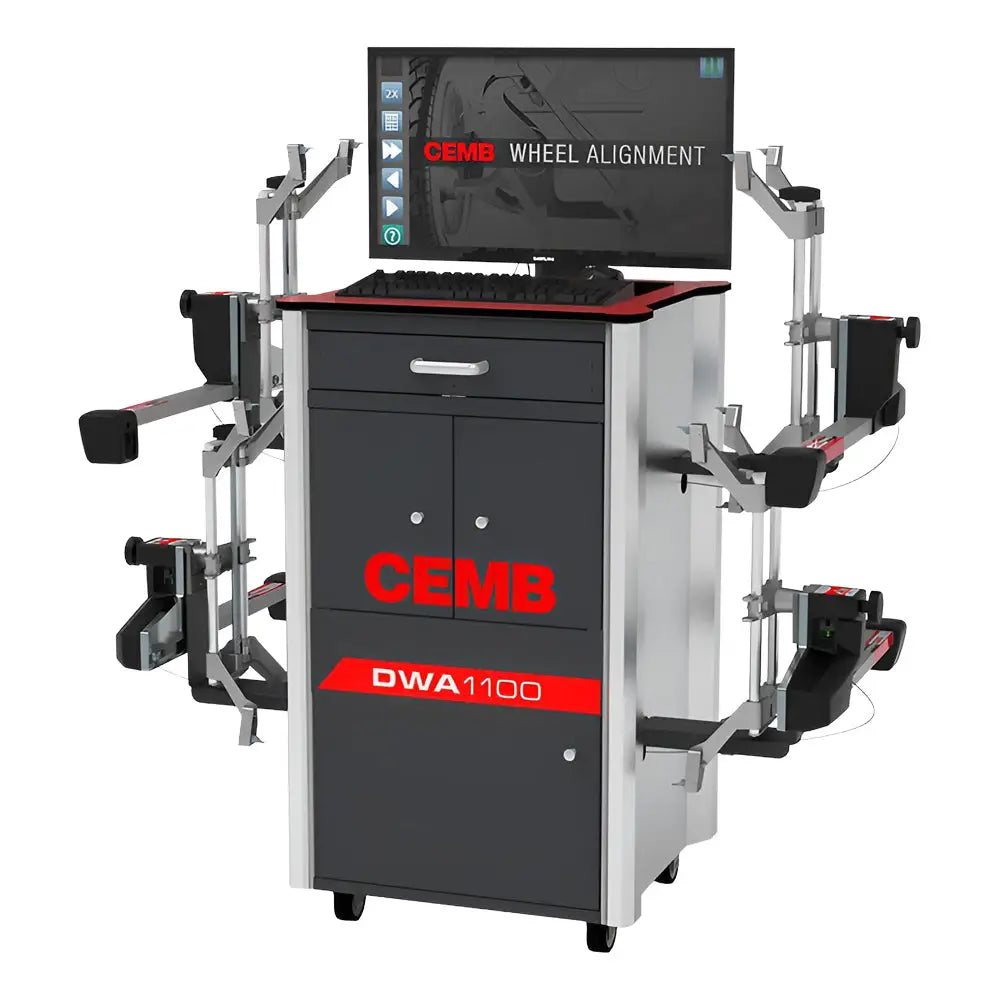

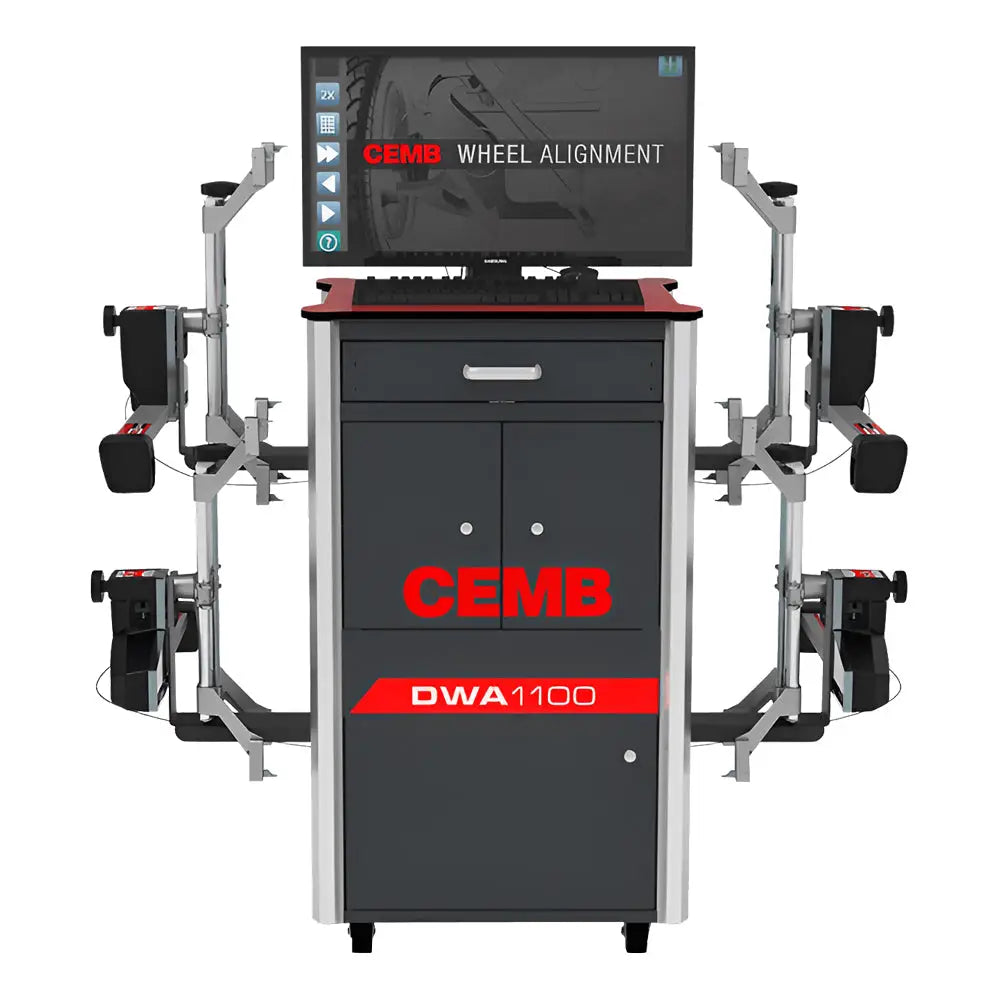

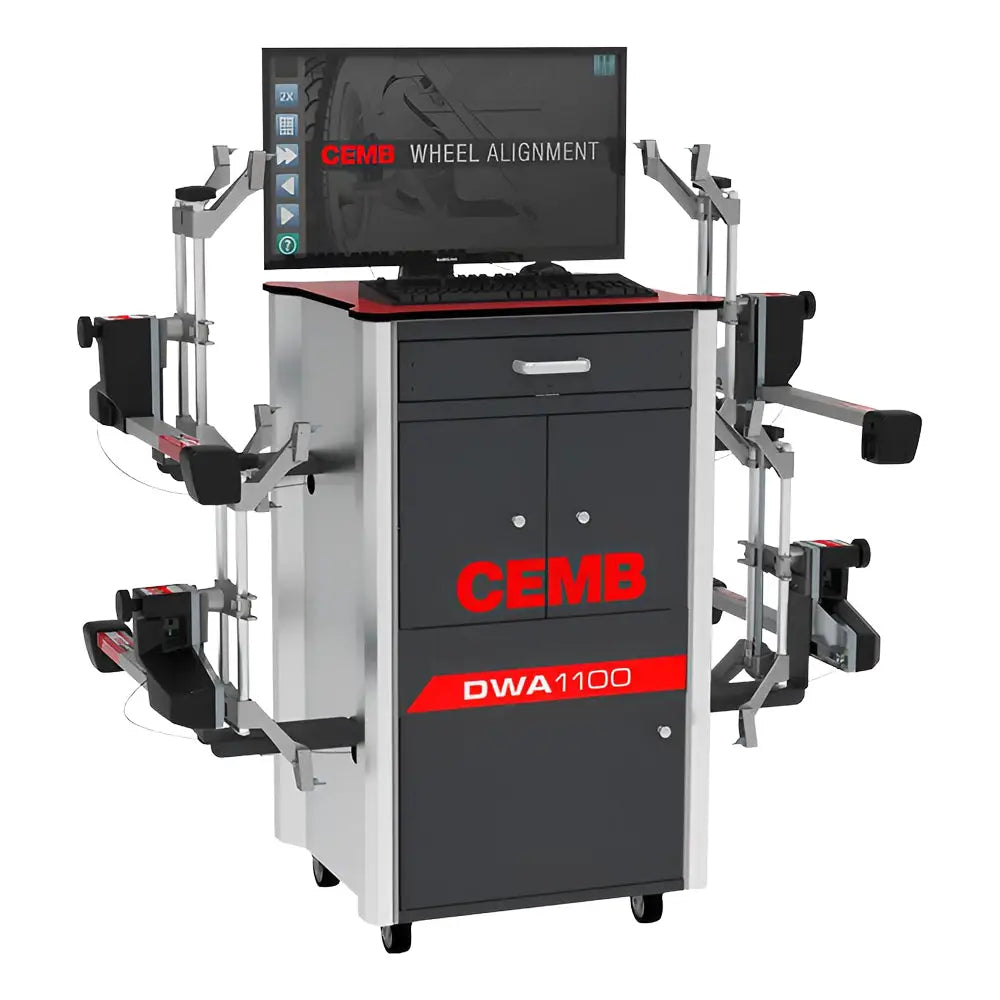

The CEMB DWA1100 CCD Wheel Alignment System is the most advanced and accurate wheel alignment system on the market. It features state-of-the-art CCD sensor technology that provides quick and accurate measurements of all alignment parameters. The system also includes a comprehensive database of more than 55,000 vehicles, making it easy to select the correct alignment settings for your car or truck.
The DWA1100 is equipped with a number of features that make it the most user-friendly wheel alignment system on the market. The system features a clear and intuitive user interface, and it guides the user through the alignment process step-by-step. The system also includes a number of advanced features, such as a built-in audit function that can identify driving problems caused by improper alignment.
The DWA1100 is the perfect choice for any automotive repair shop that wants to provide its customers with the highest quality wheel alignment services. The system is easy to use, accurate, and reliable, and it can help you to improve your bottom line by reducing the number of customer comebacks.
The DWA1100 also includes the ADAS CCD Kit, which allows you to position the CCD sensors on any ADAS/ACC calibration structure. This makes it easy to align vehicles with advanced driver assistance systems, such as adaptive cruise control and lane departure warning.
Features:
- State-of-the-art CCD sensor technology
- Comprehensive database of more than 55,000 vehicles
- Clear and intuitive user interface
- Step-by-step alignment instructions
- Built-in audit function
- Reliable and accurate
- Easy to use
- Includes ADAS CCD Kit
Benefits:
- Improved customer satisfaction
- Reduced customer comebacks
- Increased productivity
- Increased profitability
Includes:
PC- 27in TFT monitor
- Colour printer
- Windows 10 OS
- Keyboard
- Mouse
1 x DWA cabinet
4 x 4-point clamps 12"-24"
- Metallic grips with ref. surface, L48mm
1 x Bungie Cord
1 x Brake Pedal
1 x Steering Wheel Holder
1 x ADAS CCD Kit
- 1 x Software and Activation USB Key
- 2 x Sets (8 Total) Grippers for Dually Wheel
- 2 x Universal Adaptors for the ADAS Support Panel Calibration Bar
Software
Wheel Alignment Software and Database for Car/LT.
Optional:
Truck and bus upgrading kit
2 x Truck and bus turnplates
2 x rear measuring heads for the truck
16 L=120mm truck grips
Software and database for TRUCK
Clamp extensions up to 30in Extensions to increase the operating diameter up to 30in.
Grips for steel rims: Set of 4 metal grips for clamping on steel rims from the inside (also useable as adapters for other tips and grips).
Calibration kit: Calibration kit complete with a spirit level to calibrate measuring heads
Backup cables: Set of 4 feeding cables for recharging batteries when measuring heads are mounted on the vehicle (13m length)
Clamping arms kit: Clamp supporting arms and set of tips for tires with an external diameter of 22in - 31in
40in supporting arms extensions: Extended clamp supporting arms for tires up to 40in.
Webcam: Camera support for the positioning of the vehicle on the lift
Wireless Stick: USB WiFi Adapter for the software and database automatic update and for the Wheel Alignment App use.
Premium Turnplates: Two premium turnplates for the car, complete with paddles
Drop-down extension: 4 Adapters for use with two-post lift or truck wheels (up to 50in). Two fulcrum drop-down positions: 125mm or 250mm.
3-point clamps: Set of four 3-point self-centering wheel clamps for rims 10in-25in.
Wheel alignment app: Wheel alignment App is the App that enables the replication on your smartphone or tablet of the wheel alignment monitor, acting as a remote control to operate on the machine software.
Router: The router is necessary to use the App for remote control (Wheel Alignment App).
