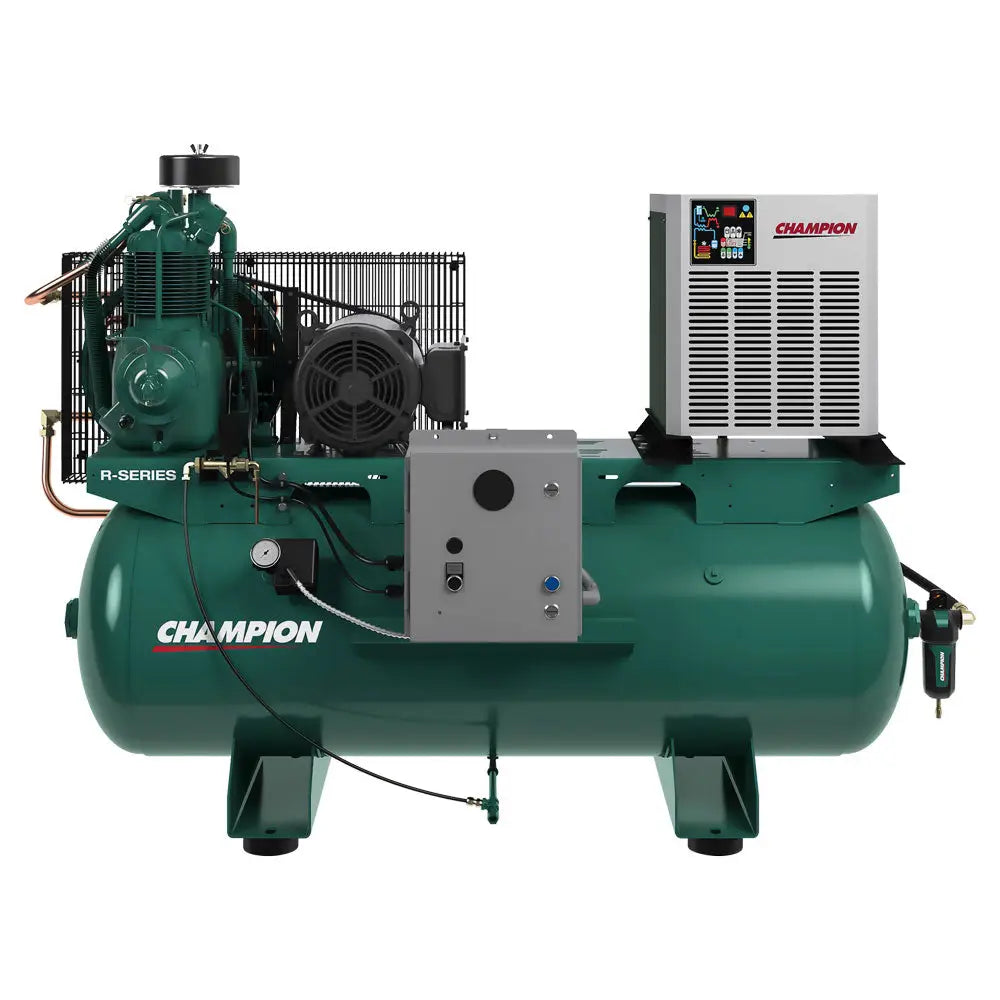

Champion 5HP R Series Horizontal Air Compressor - 80 Gallon Tank with R15 Pump (HR5-8) - Ideal for Auto Shops, Woodworking & Industrial Applications
$2050.4
$3728
Safe 45%
Champion 5HP R Series Horizontal Air Compressor - 80 Gallon Tank with R15 Pump (HR5-8) - Ideal for Auto Shops, Woodworking & Industrial Applications
$2050.4
$3728
45% Off
Delivery & Return: Free shipping on all orders over $50
Estimated Delivery: 10-15 days international
7 people viewing this product right now!
SKU: 28974220
Guranteed safe checkout
Description
Looking for a reliable air compressor that will last for years? Look no further than the Champion HR5-8. This high-performance unit is perfect for a variety of applications and environments. This compressor is built to last with a 5hp motor and an 80-gallon air receiver.
Features:
- Load-less starting / via centrifugal unloader for lower energy costs and less wear on the drive motor
- Mounted Control Panel with Magnetic Starter
- ASME inter-stage pressure relief valve for protection
- ODP NEMA 1760 RPM electric motor
- 10 Micron industrial grade intake filter
- ASME / NB certified receivers
- 0-300 PSIG air pressure gauge on the tank
Specs:
Model Number: HR5-8Prod. Configuration: Simplex
Tank Configuration: Horizontal
Pump Model: R15
Pump RPM @ 175 PSI: 737
Tank Size: Gallons: 80
ACFM @ 80 PSIG (m3/hr @ 5.5 BAR): 21.6 (36.7)
ACFM @ 125 PSIG (m3/hr @ 8.6 BAR): 21.0 (35.7)
ACFM @ 175 PSIG (m3/hr @ 12 BAR): 17.0 (28.9)
Voltage:
- 1 Phase: 208 / 230V
- 3 Phase: 208 / 230 / 460 / 575V
Est. Ship Weight: Lbs.: 590
Control Panel Level1 - NEMA 1: Standard
Panel Mounting: Included
California Code: Standard
XCNC25 (Optional Mounted Dryer)
Inlet Flow (scfm / Nm³/h): 25 / 43
Pressure Drop (psi): C/F
Voltage: 115/1/60
In/out Connections: 1/2" FNPT
Power Consumption (kW): 0.27
Refrigerant: R-134A
Dimensions H × W × D Inches (mm): 18 × 16 × 18 (457 × 406 × 457)
Weight Lbs (kg): 60 (27)
Tank Configuration: Horizontal
Pump Model: R15
Pump RPM @ 175 PSI: 737
Tank Size: Gallons: 80
ACFM @ 80 PSIG (m3/hr @ 5.5 BAR): 21.6 (36.7)
ACFM @ 125 PSIG (m3/hr @ 8.6 BAR): 21.0 (35.7)
ACFM @ 175 PSIG (m3/hr @ 12 BAR): 17.0 (28.9)
Voltage:
- 1 Phase: 208 / 230V
- 3 Phase: 208 / 230 / 460 / 575V
Est. Ship Weight: Lbs.: 590
Control Panel Level1 - NEMA 1: Standard
Panel Mounting: Included
California Code: Standard
XCNC25 (Optional Mounted Dryer)
Inlet Flow (scfm / Nm³/h): 25 / 43
Pressure Drop (psi): C/F
Voltage: 115/1/60
In/out Connections: 1/2" FNPT
Power Consumption (kW): 0.27
Refrigerant: R-134A
Dimensions H × W × D Inches (mm): 18 × 16 × 18 (457 × 406 × 457)
Weight Lbs (kg): 60 (27)
