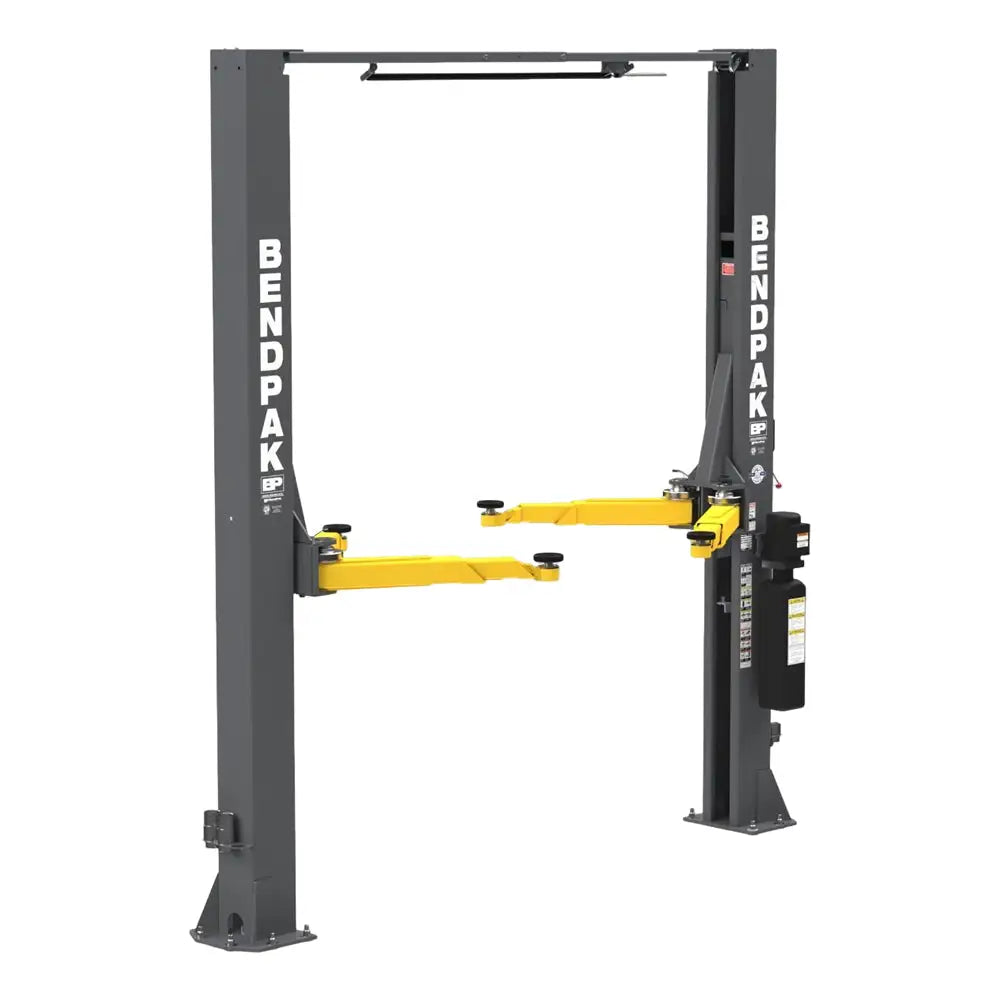

In the market for a next-generation 2-post lift for your shop? Look no further than the BendPak 10AP Bi-Metric Arm Lift. BendPak, known for their innovative car lift designs that prioritize safety and efficiency, offers this versatile 10,000-lb capacity lift ideal for modern shop demands.
The 10AP features Bi-Metric™ Swing Arms, similar to those found on Challenger's Verysymmetric lift. This design allows for both symmetrical and asymmetrical lifting configurations, providing maximum flexibility for various vehicles entering your shop. With features like automatic arm restraints, low-profile arms, and a user-friendly safety lock system, the BendPak 10AP is a ALI-certified investment that will boost your shop's productivity for years to come.
Features:
- Durable powder coat finish for long-lasting protection
- Expandable top beam for various drive-thru configurations
- Double-telescoping screw pads increase versatility
- Padded overhead safety shutoff bar for added protection
- Bi-Metric™ arm design allows for flexible positioning
- Single-point safety release for quick and easy operation
- Drop-end arms provide lower pad height
- Dual hydraulic direct-drive cylinders for powerful performance
- Tall carriages (53in & 59in) ensure strength and durability
- Electric / hydraulic HVLP power system for efficient operation
- Self-lubricating UHMW polyethylene bearings for smooth movement
- Safety locks every 3in in each column

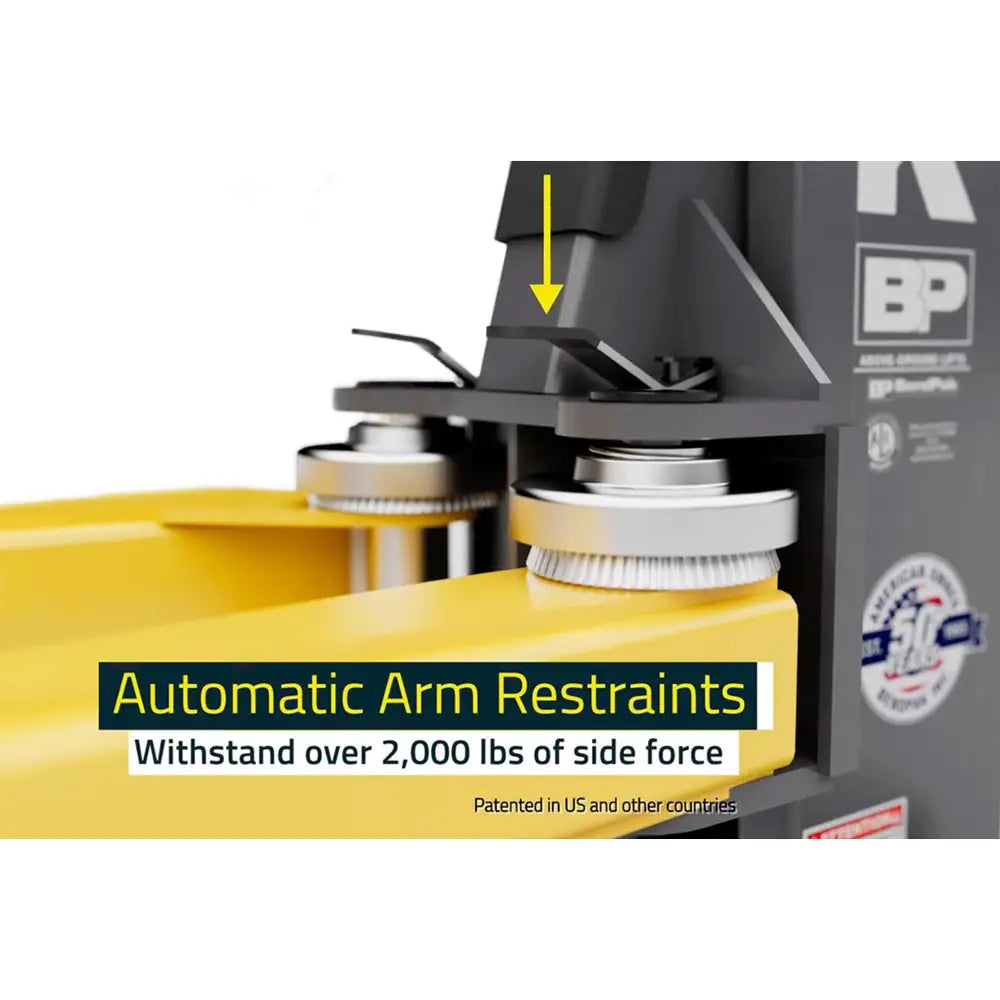

- Automatic arm restraints withstand 2000+ pounds of force
- High-strength galvanized steel cable for reliable performance
- Large cable sheave reduces fatigue and extends life

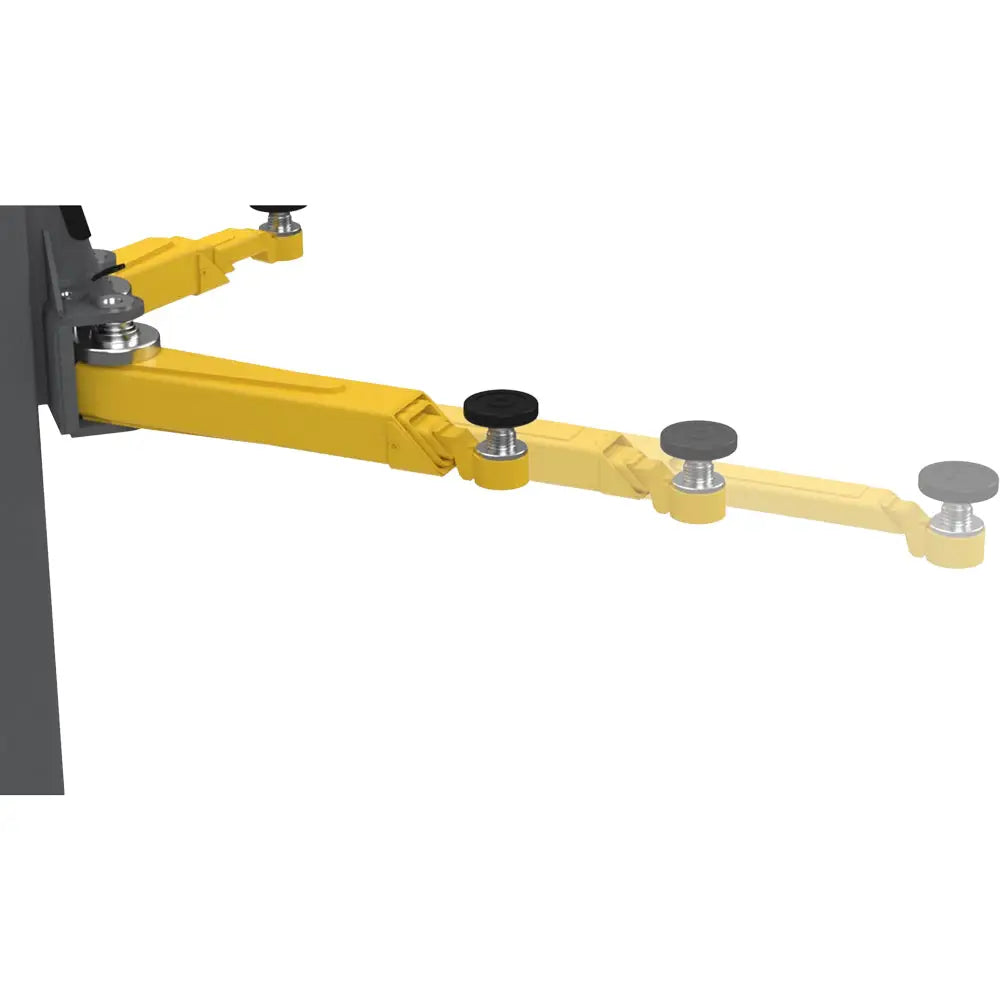

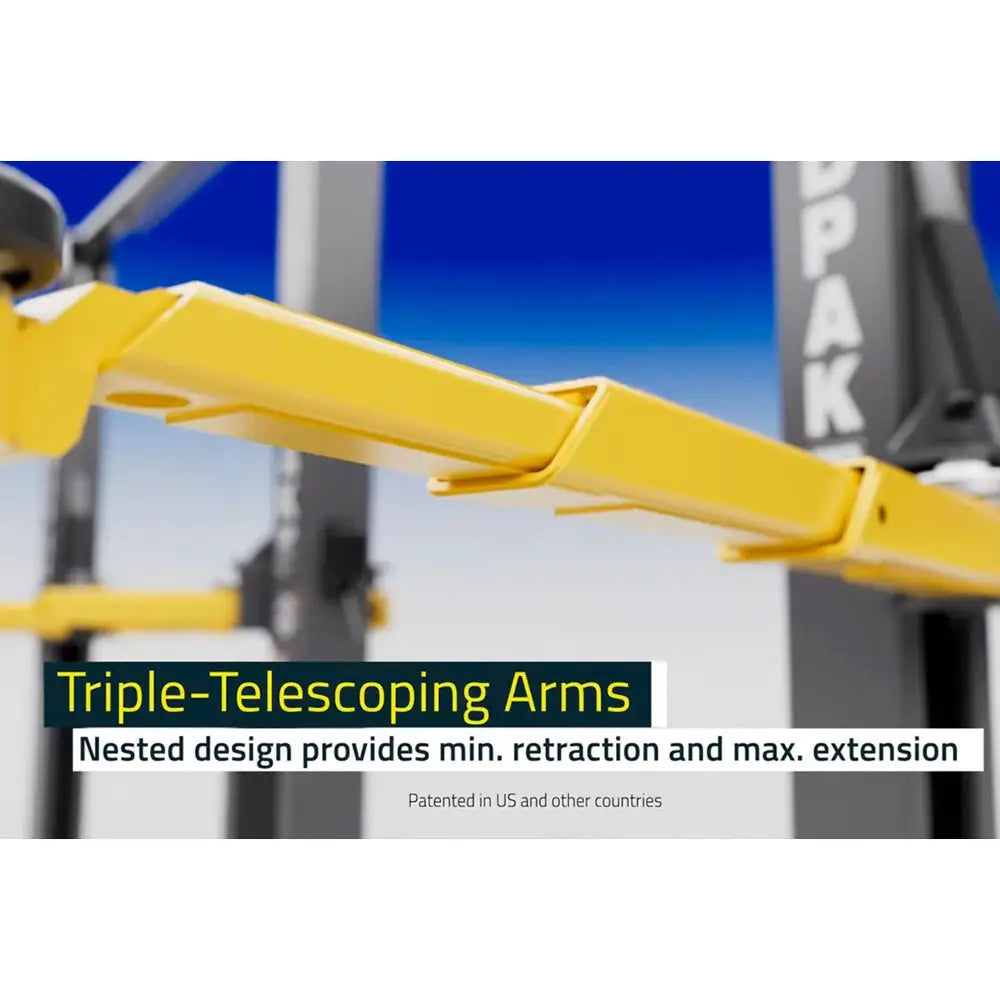

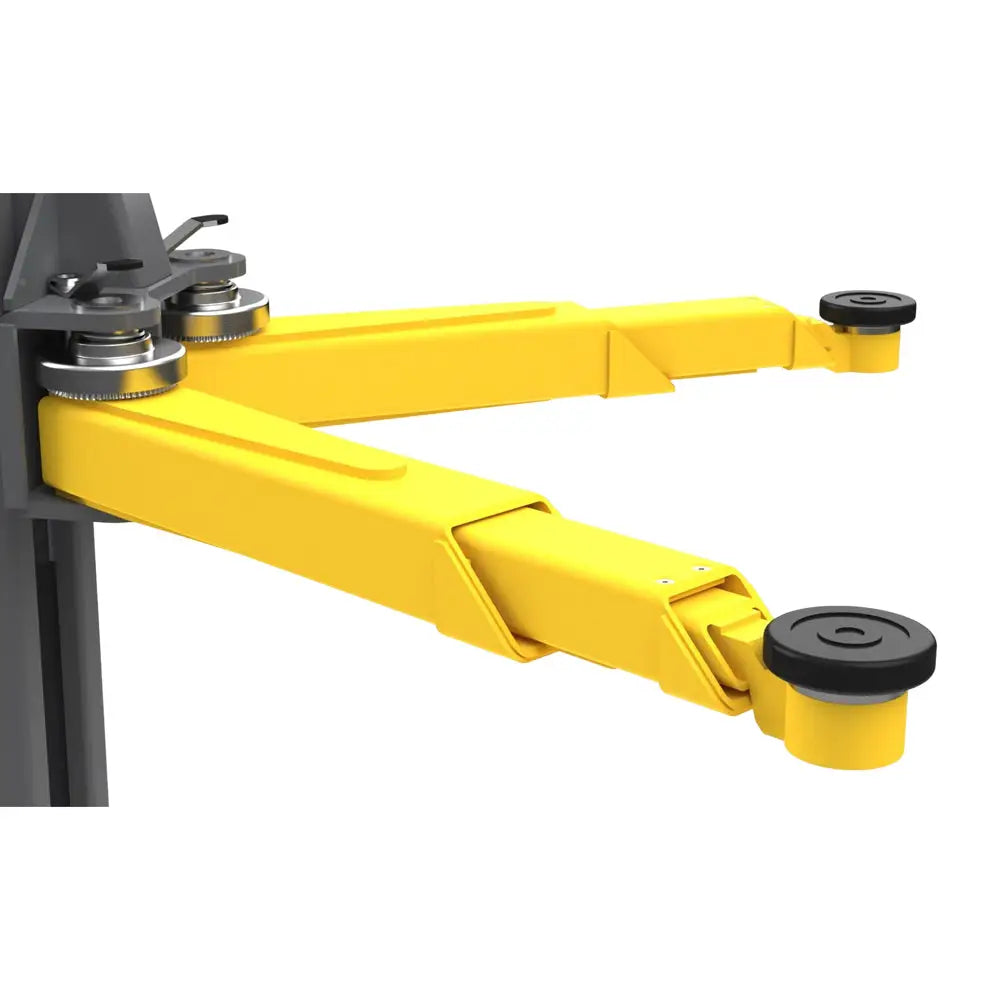

- Four triple-telescoping arms for maximum flexibility
- ALI certified for safety and quality assurance
Specs:

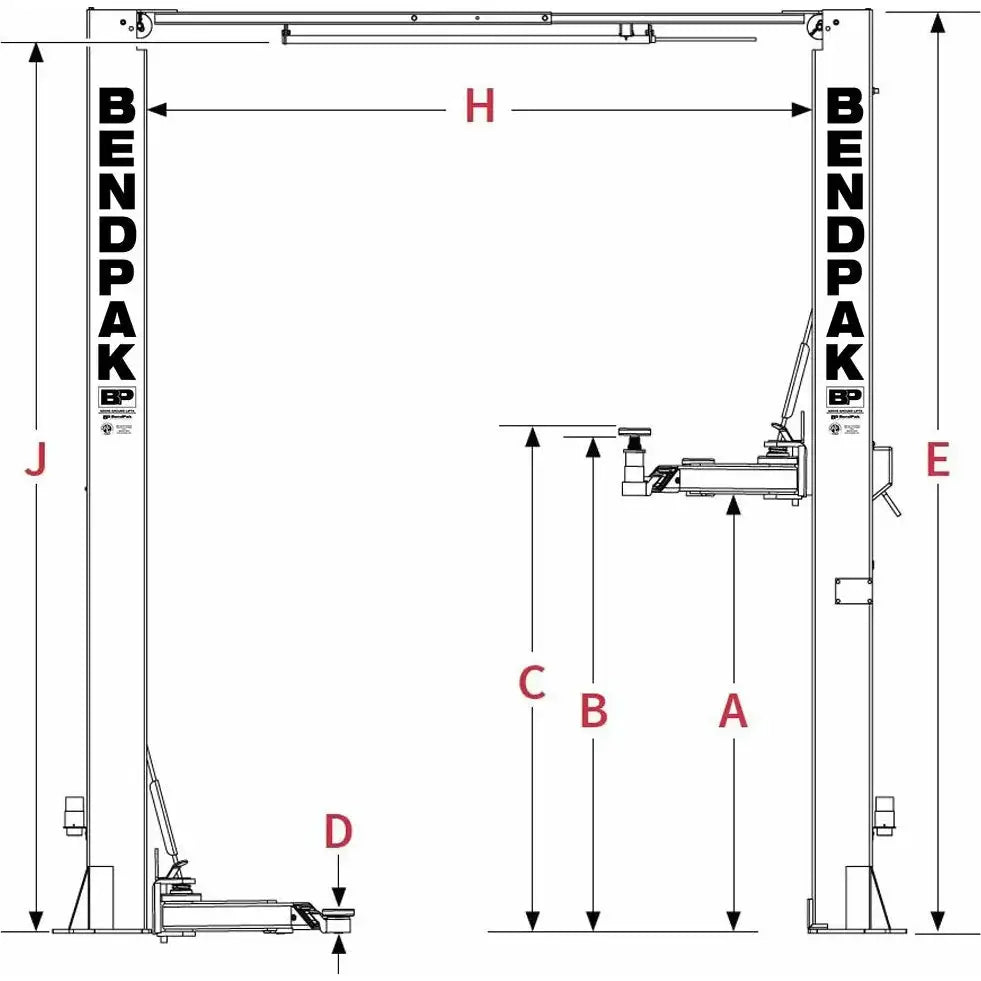

Lifting Capacity: (*): 10,000 lbs. (4,536 kg)Rise
A - Max Rise: 69in / 1,753 mm
B - Rise + Pad Only: 73in / 1,854 mm

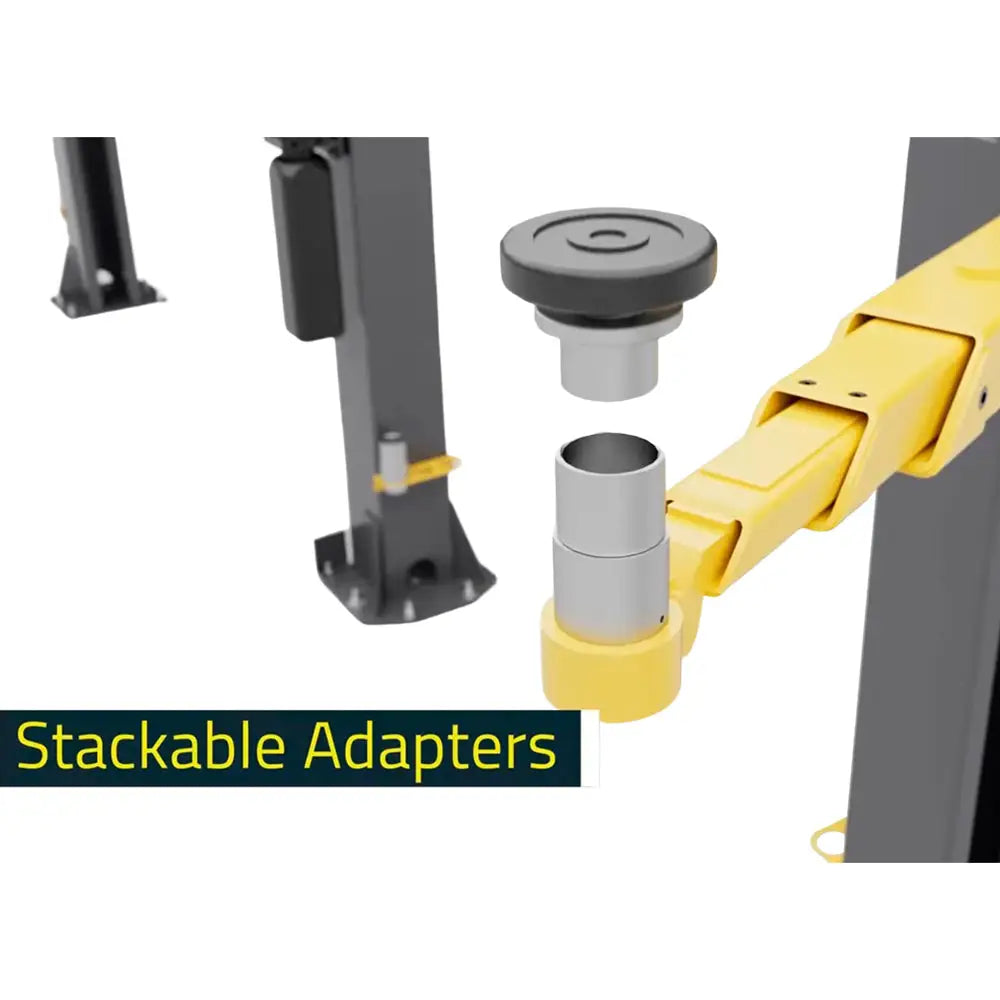

C - Rise + Pad + 63 mm Adapter: 82.5in /2,096 mm
D - Min. Height + Pad: 4in /102 mm
Time to Full Rise: ≈45 seconds
Outside Dimensions
E - Height Overall: 145in /3,683 mm

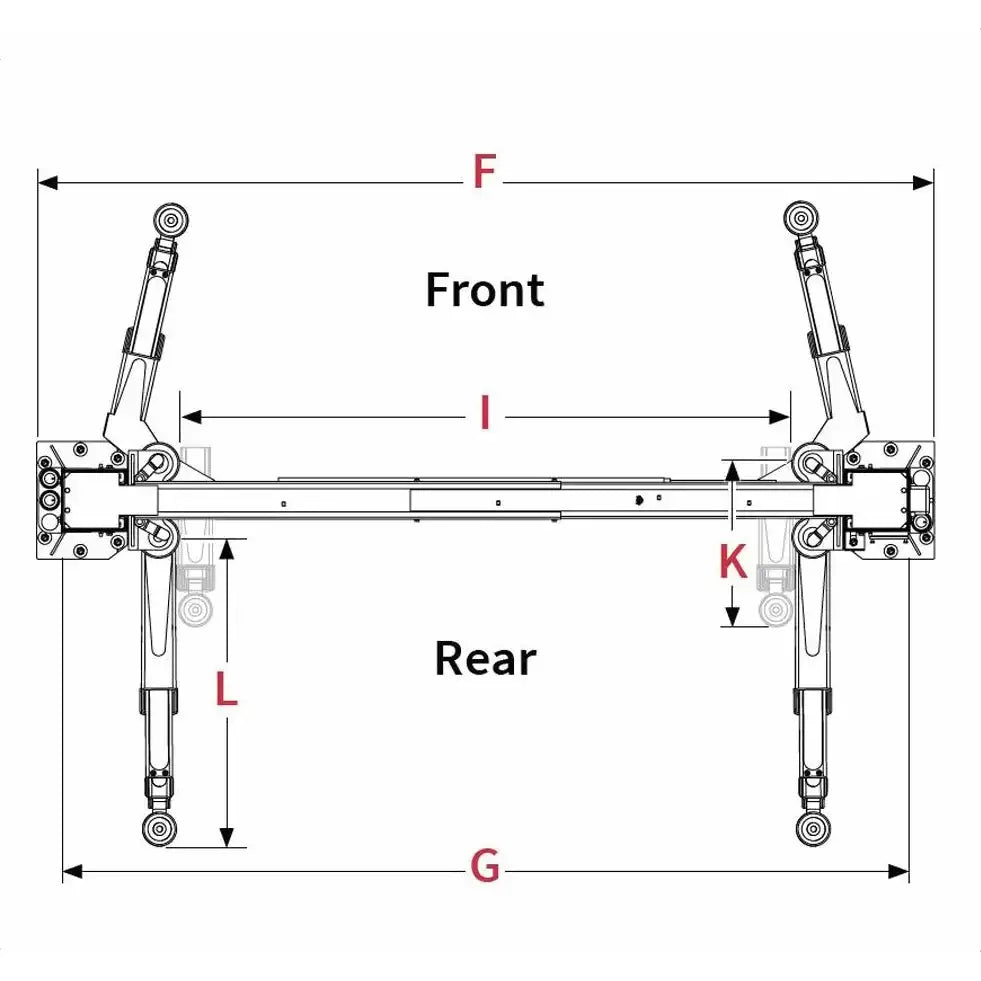

F - Width Overall: 135in or 145in / 3,431 mm or 3,683 mm
G - Outside Column Width: 127.5in or 137.5in / 3,239 mm or 3,493 mm
Inside Dimensions
H - Inside Columns: 108.5in or 118.5in / 2,756 mm or 3,010 mm
I - Drive-Thru Clearance: 97.5in or 107.5in (2,477 mm or 2,731 mm)
J - Floor To Overhead Switch: 140in / 3,556 mm
Arms & Pads
K - Front Arm Reach (Max): 50in / 1,270 mm
K - Front Arm Reach (Min): 24.5in / 622 mm
K - Rear Arm Reach (Max): 59.25in / 1,505 mm
K - Rear Arm Reach (Min): 32in / 813 mm
Max Load Per Arm: 2,500 lbs. / 1,134 kg
Screw Pad Adjustment: 2in / 51 mm
Power Unit
Motor: 220 VAC / 60 Hz. / 1Ph
Noise: <70 dB
Ref No.
5175304
Similar Products
10APX (E: 157in; J:152in)
10AP-168 (E: 168in; J:163in)
10APX-181 (E: 181in; J:176in)
Application:
Auto repair shopsCar dealerships
Fleet maintenance
Tire centers
Includes:

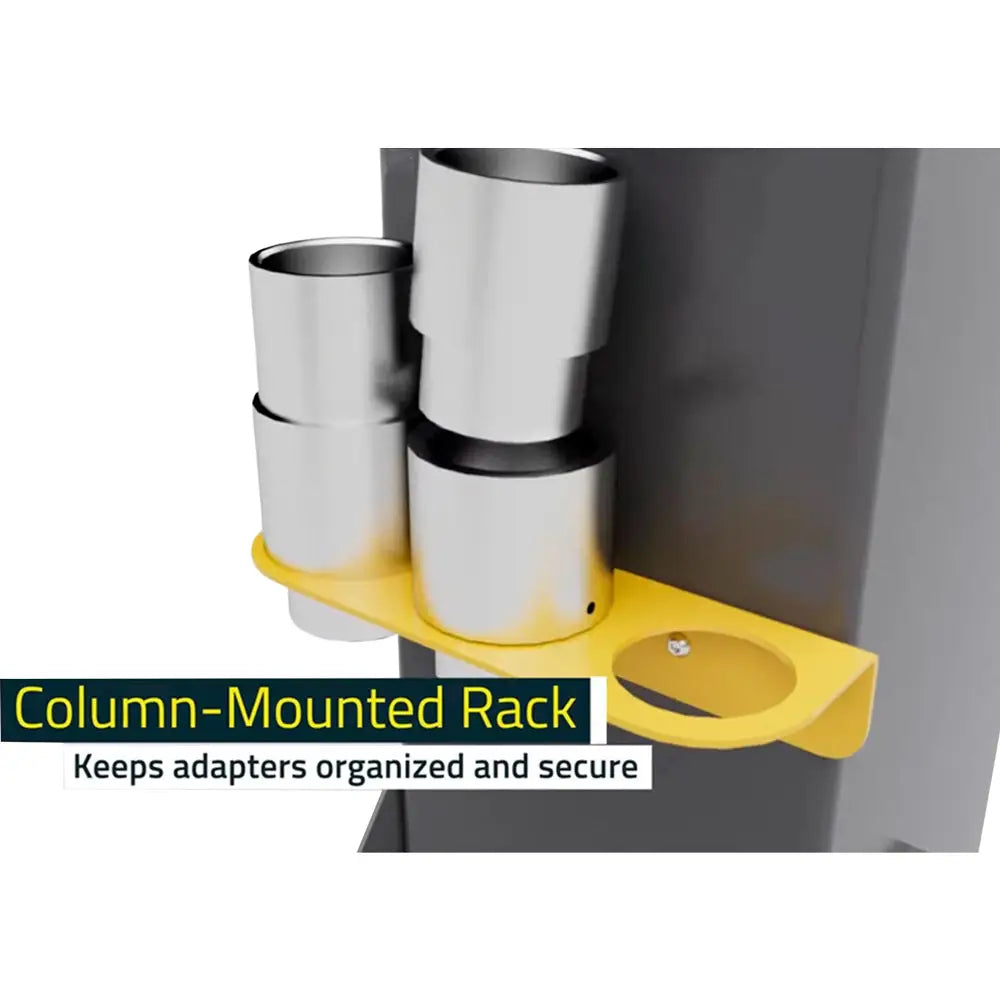

4-Piece Screw PadsAdapter Holder
